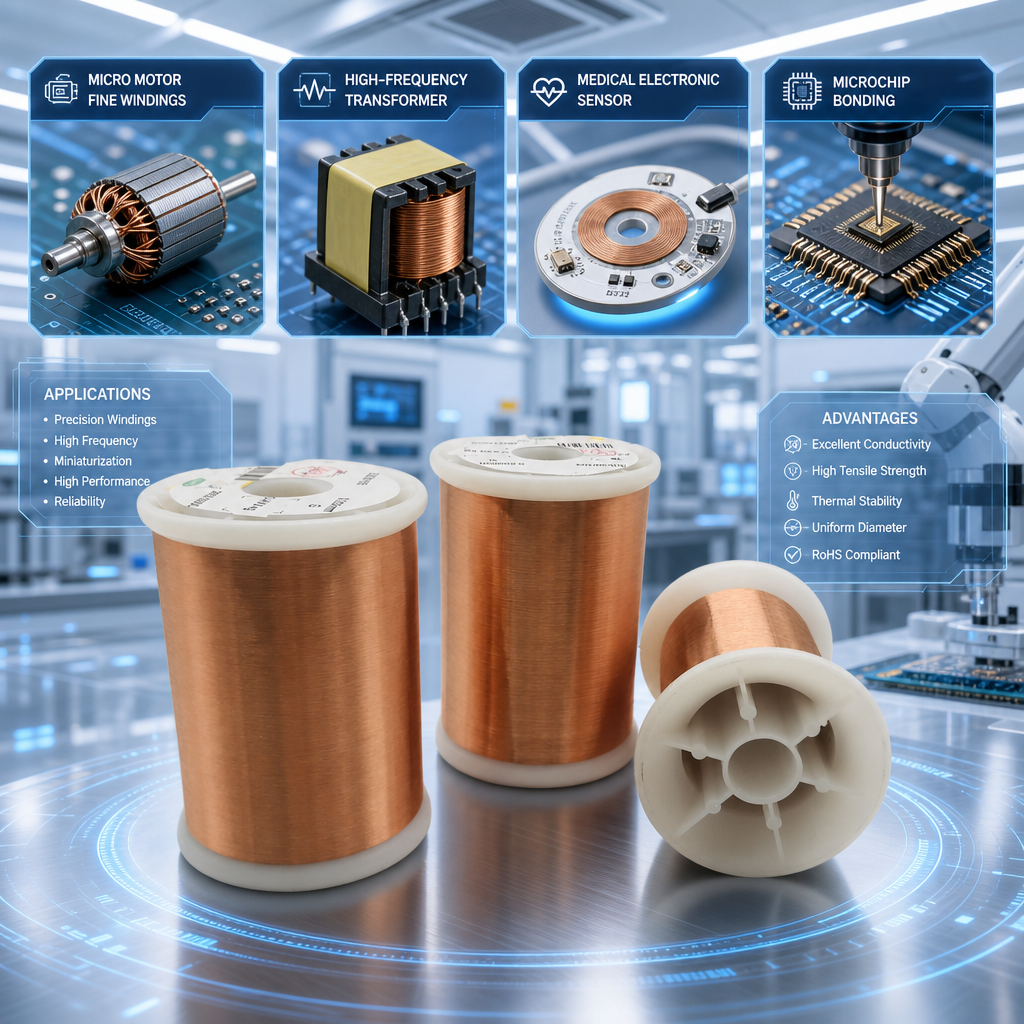

2UEW-F 155 Super thin Magnetic Copper Wire Enameled Wire

Short Description:

In the fields of precision component manufacturing, material selection can significantly impact performance and reliability. We are proud to introduce our ultra-fine enameled copper wire with an impressive diameter of just 0.02 mm. This solderable enameled copper wire is designed to meet the stringent requirements of a variety of applications, ensuring your project meets the highest standards of quality and efficiency.

Send email to us

Product Detail

Product Tags

Product Description

Our ultra-fine wire is more than just a product; It demonstrates our commitment to innovation and excellence. Our ultra-fine wire diameters range from 0.012 mm to 0.08 mm, leading the industry and setting the benchmark for quality and performance. This particular series enables a variety of applications, making it ideal for winding precision components. Whether you're crafting complex watch mechanisms, high-fidelity headphone cables, or other delicate electronic devices, our ultra-fine enameled copper wire delivers the reliability and precision you need.

Advantages

·IEC 60317-20

·NEMA MW 79

·customized according to customer requirements.

Features

Our ultra-fine enameled copper wire has applications far beyond traditional uses. In electronics, miniaturization is key and our wires are ideal for creating compact and efficient designs.

Our ultra-fine enameled copper wire is more than just a product; it is a tailor-made solution for precision engineering needs. Its ultra-fine diameter, excellent heat resistance and versatile applications make it the first choice of manufacturers and engineers. Whether you are winding precision components or integrating advanced technology into your designs, our ultra-fine enameled copper wire will deliver the performance and reliability you need. Experience the difference precision makes - choose our ultra-fine enameled copper wire for your next project and take your engineering capabilities to new heights.

Specification

2UEW155 0.02mm
Characteristics	Technical requests	Test Results
Characteristics	Technical requests	Sample1	Sample 2
Surface	Good	OK	OK
Bare Wire Diameter	0.02±0.001	0.020	0.030
Overall diameter	0.022-0.024	0.0230	0.0230
Elongation	≥ 8%	10	10
Enamel continuity	≤ 8hole/5m	1	0
Breakdown voltage	≥130V	212	247
Electrical Resistance	≤60.810Q /m	56.812	56.403
Adhesive	No crack	OK
Heat Shock	200±5 ℃/30min no crack	OK
Solder Ability	390℃±5C/2S Smooth	OK

Certificates

Customer Oriented,Innovation brings more Value

RUIYUAN is a solution provider, which requires us to be more professional on wires, insulation material and your applications.

Ruiyuan has a heritage of innovation, along with advancements in enameled copper wire, our company has grown through an unwavering commitment to integrity, service and responsiveness to our customers.

We look forward to continuing to grow on the basis of quality, innovation and service.

7-10 days Average delivery time.
90% European and North American customers. Such as PTR,ELSIT, STS etc.
95% Repurchase rate
99.3% Satisfaction rate. Class A supplier verified by German customer.
