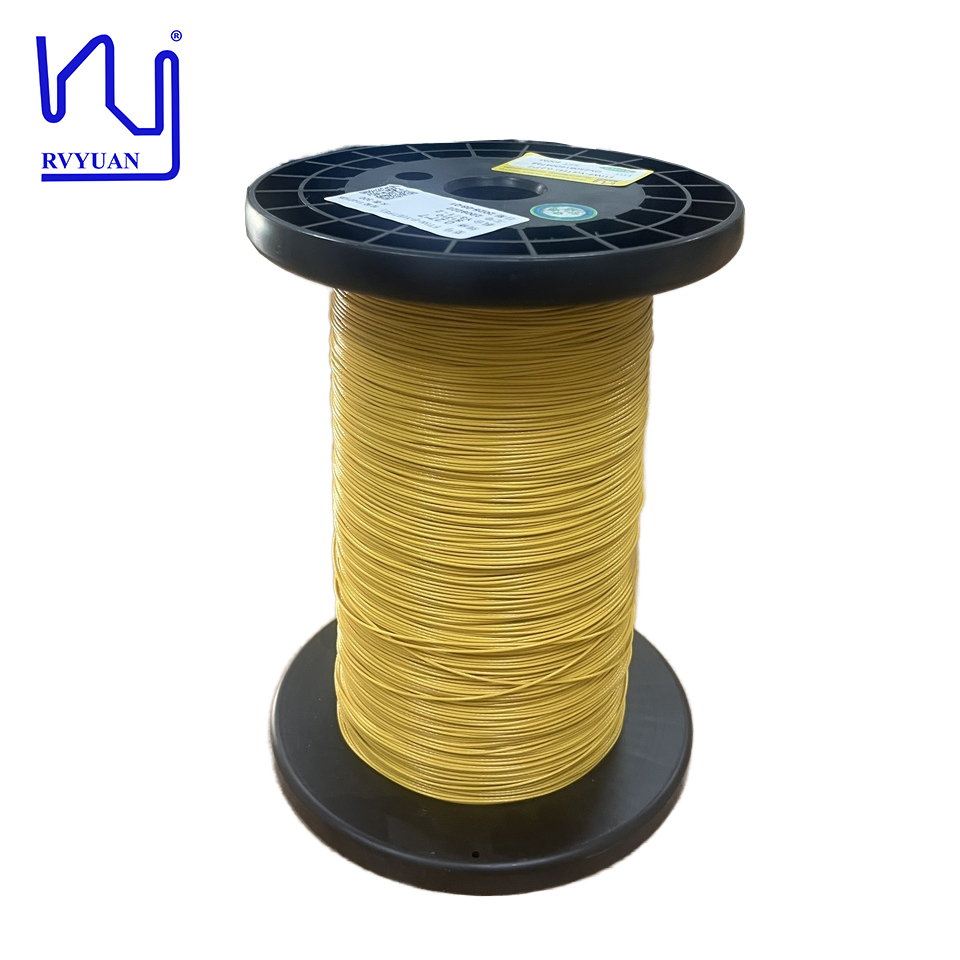

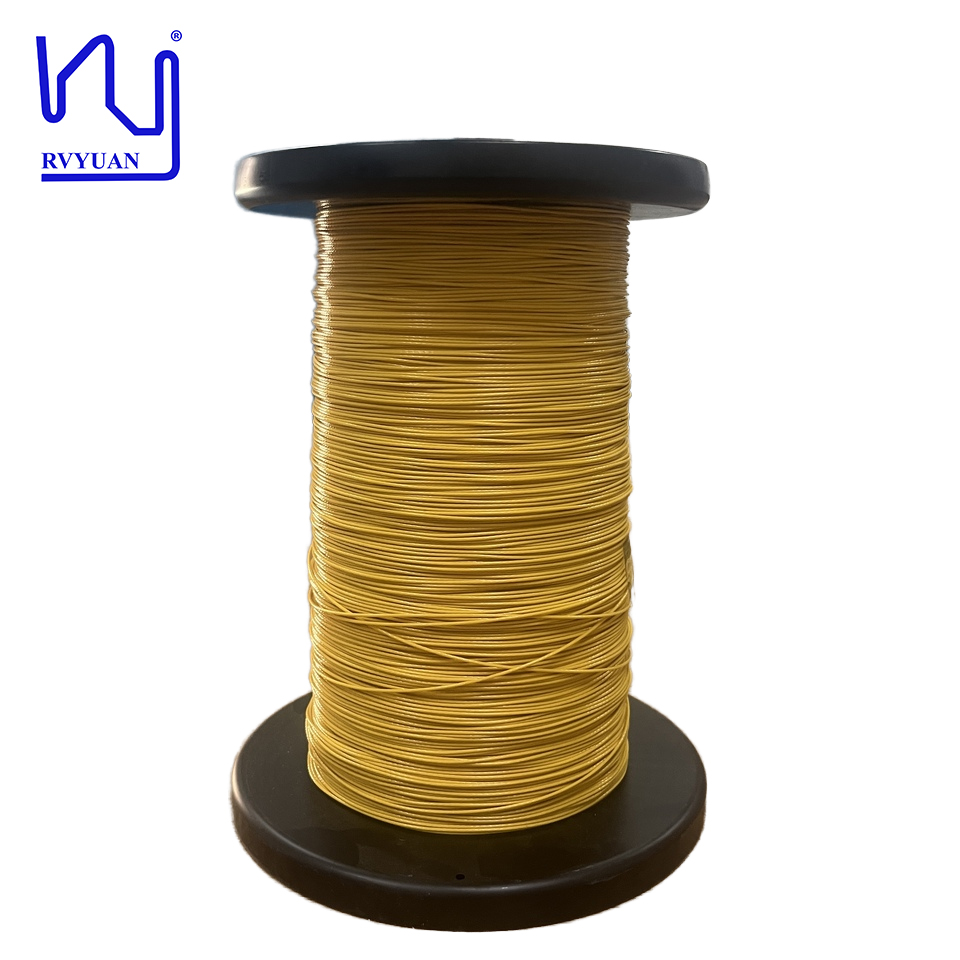

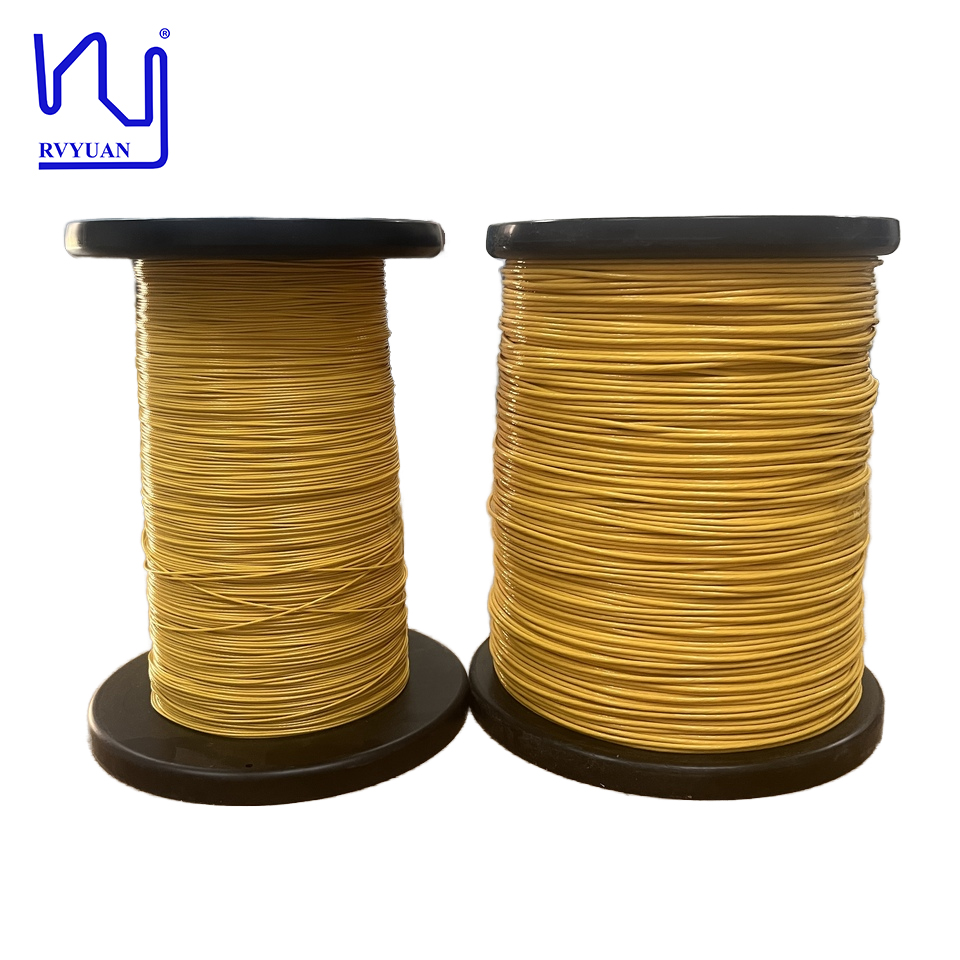

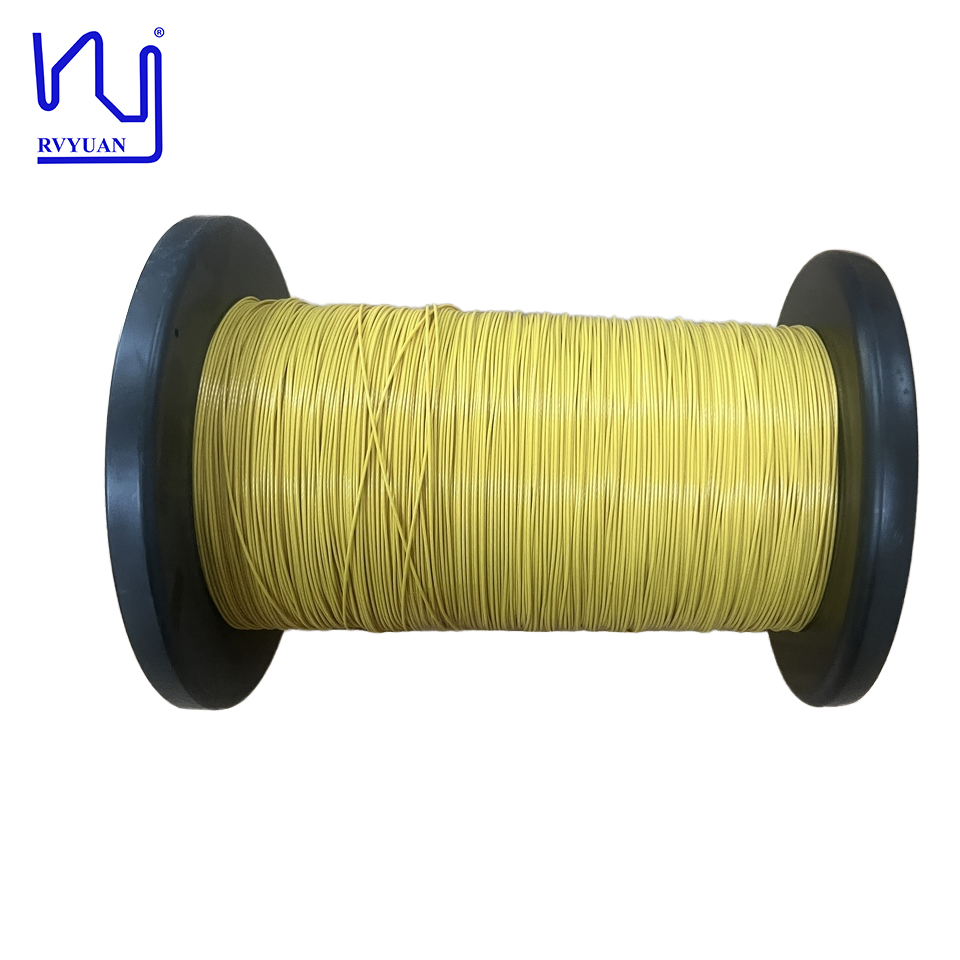

FTIW-F Class 155 0.27mmx7 Extruded ETFE Insulation Litz Wire For High Frequency Transformer

Short Description:

ETFE insulation Litz wire is a high-performance cable featuring a bundle of individually insulated strands twisted together and coated with an extruded layer of Ethylene Tetrafluoroethylene (ETFE) insulation. This combination offers superior performance in demanding applications by minimizing skin-effect losses in high-frequency environments, enhanced electrical properties for high-voltage use, and excellent thermal, mechanical, and chemical resistance due to the strong ETFE fluoropolymer.

Send email to us

Product Detail

Product Tags

Product Description

How it's constructed

Individual copper strands are insulated, often with a lacquer coating.
These strands are then twisted or bundled together to form the Litz structure.
An extruded, continuous layer of ETFE is applied to the outside of the twisted bundle for protection and enhanced insulation.

Key advantages

Reduced AC Resistance:

The twisted, multi-strand construction minimizes skin effect and proximity effect, leading to improved efficiency at high frequencies.

Enhanced Insulation:

ETFE provides excellent electrical insulation and high breakdown voltage, suitable for high-voltage applications.

Superior Durability:

The fluoropolymer insulation offers outstanding resistance to heat, chemicals, moisture, and UV radiation, ensuring longevity in harsh environments.

Flexibility:

The multiple strands and ETFE's mechanical properties contribute to increased flexibility.

Common Applications

High-Frequency Transformers:

Used in transformers to improve efficiency and reduce losses at high operating frequencies.

Wireless Charging Systems:

Its robust nature and high electrical performance make it ideal for applications like forklift wireless charging systems.

Aerospace and Medical Industries:

The durability and high-performance characteristics of ETFE make it suitable for demanding aerospace, medical, and nuclear instrumentation applications.

Harsh Environments:

Its resistance to chemicals and extreme temperatures allows it to be used in industrial and marine environments.

Specification

Characteristics	Test Standard	Test result
Outer diameter of single wire	0.295mm	0.288	0.287	0.287
Min. insulation thickness	/Mm(min)	0.019	0.018	0.019
Pitch	S12±2	ok	ok	ok
Single wire Diameter	0.27±0.004MM	0.269	0.269	0.268
Overall dimension	1.06-1.2mm(Max)	1.078	1.088	1.085
Conductor Resistance	Max.45.23Ω/KM(max)	44.82	44.73	44.81
Breakdown voltage	Min. 6KV(min)	15	14.5	14.9
Solder ability	450℃ 3Secs	OK	OK	OK
Conclusion	Qualified

Certificates

Application

Automotive coil

sensor

special transformer

special micro motor

inductor

Relay
