Ultra-Fine Wire Technology

AWG 52 Magnet Wire For Precision Inductor Production

Engineered for next-generation micro-inductors, high-Q RF components, implantable medical sensors, and advanced aerospace electromagnetic devices demanding sub-micron precision.

Request Technical Specifications

Featured Micro & Fine Magnet Wire Solutions

High-performance copper and Litz wire configurations designed for high-frequency precision inductors and miniature electromagnetic coils.

42 AWG Green Color Poly Coated Magnet Wire For Precision Inductors

View Product Details

High-Frequency 2UEW-F Litz Wire For Micro Inductors

High-Frequency 2UEW-F 0.071mm x 60 Strands Litz Wire For Inductors

View Product Details

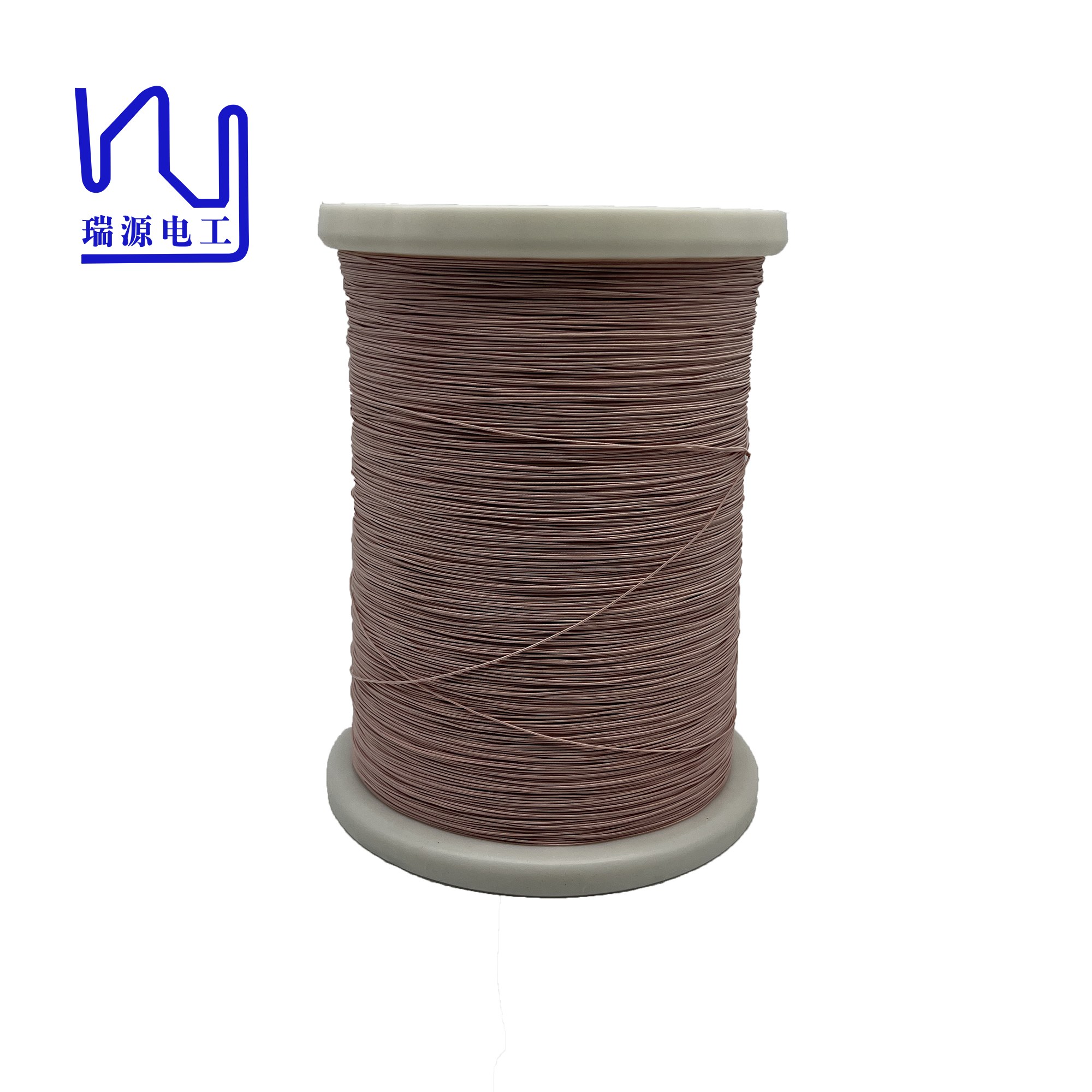

Nylon Served Litz Wire For Precision Coils

2USTC-F 155 0.04mm * 145 Copper Stranded Wire Nylon Served Litz Wire

View Product Details

2UEWF 0.06mm*7 Stranded Copper Enameled Wire For Micro High-Q Inductors

View Product Details

The Paradigm Shift in Micro-Inductor Manufacturing

Exploring the role of AWG 52 magnet wire in enabling radical electronic miniaturization, superior thermal efficiency, and high Q-factor performance.

Ultra-Fine Gauge Precision

AWG 52 copper wire features a nominal conductor diameter of approximately 0.020mm (20 microns). Achieving concentric enamel insulation at this micro-scale requires extreme chemical purity and tension-controlled wire drawing processes.

High Q-Factor Efficiency

In radio frequency (RF) and micro-inductor applications, AWG 52 reduces eddy current losses and skin effect resistance, enabling exceptionally high Quality Factors (Q-factor) across megahertz and gigahertz spectrums.

Dielectric Uniformity

Coated with polyurethane (UEW), polyesterimide (EIW), or polyimide (AIW), AWG 52 magnet wire provides superior breakdown voltage resilience without pinholes, even under continuous high thermal loads up to 220°C.

Industrial Landscape & Current Demand Dynamics for AWG 52 Magnet Wire

The global electronics manufacturing landscape is undergoing an unprecedented shift toward extreme spatial optimization. Modern high-density Printed Circuit Board Assemblies (PCBAs) in 5G smartphones, true wireless stereo (TWS) earwear, implantable medical telemetry, and aerospace satellite payload modules demand micro-inductors with footprint dimensions measured in fractions of a millimeter. Central to this manufacturing revolution is AWG 52 magnet wire (0.020mm bare copper diameter).

As operating frequencies push into high RF ranges, traditional magnet wire gauges induce unacceptable proximity and skin-effect power dissipation. Precision inductors wound with AWG 52 magnet wire maximize the active copper fill factor within micro-ferrite cores or air-core geometries, achieving optimal inductance values without compromising parasitic capacitance. Furthermore, the modern market demands ultra-low loss characteristics under elevated operating temperatures, driving magnet wire manufacturers to innovate customized polyurethane and self-bonding enamel formulations tailored for automated high-speed bobbinless winding.

Technical Milestone: Sub-Micron Tolerance Control

At a physical wire diameter of 20 microns—less than one-third the thickness of a single strand of human hair—diameter consistency is paramount. A variance of just 0.5 microns can alter DC resistance (DCR) by up to 5%, leading to performance drift in high-precision RF filtering circuits. Premier suppliers utilize laser continuous scan micrometers during enamel curing to maintain strict dimensional fidelity.

Deep Application Breakdown: Where AWG 52 Drives Innovation

Biomedical Micro-Implants & Hearing Aids: Implantable cardiac pacemakers, cochlear implants, and intraocular micro-sensors require ultra-compact induction coils for wireless energy harvesting and data telemetry. AWG 52 magnet wire enables high turn-counts within microscopic enclosures.
High-Frequency RF Inductors & Chip Induction Coils: Surface-mount device (SMD) inductors used in 6G development setups, radar modules, and high-speed Wi-Fi 7 chipsets rely on AWG 52 and AWG 50 fine wires to achieve superior resonance stability.
Miniature Acoustic Drivers & Haptic Motors: Next-generation wearable audio devices utilize self-bonding AWG 52 magnet wire to build voice coils with high flux density, producing crisp acoustic output within sub-5mm transducer housing.
Aerospace Gyroscopes & Micro-Actuators: Inertial measurement units (IMUs) for satellites and tactical drones require fine magnet wire wound coils that withstand severe vibration, cryogenic cycling, and high-vacuum thermal stresses.

7-10 Days

Average Global Delivery Time

90%

European & North American Clients

95%

Client Order Repurchase Rate

99.3%

Quality Satisfaction Rating

Tianjin Ruiyuan Electric Material Co., Ltd. (Ruiyuan)

Explore All Product Series

Established in 2002, Tianjin Ruiyuan Electric Material Co., Ltd. has spent over two decades tackling the central question of precision manufacturing: "How do we create maximum value and technical certainty for our global customers?" This relentless pursuit has propelled our expansion from ultra-fine enameled copper wire to high-frequency Litz wire, USTC silk-covered wire, rectangular enameled copper wire, triple-insulated wire (TIW), and vintage acoustic pickup wire across 6 core product families encompassing over 20 specialized magnet wire formulations.

At Ruiyuan, our operating philosophy—"Customer Oriented, Innovation Brings More Value"—is embedded in our engineering DNA. Rather than acting as a simple catalog distributor offering rigid off-the-shelf sizes, we function as dedicated solution providers. We partner with R&D engineers worldwide to select optimal insulation chemistry, thermal classes, and custom stranding geometries tailored directly to demanding high-frequency and high-density electrical applications.

Engineering Success Story: Custom ETFE Litz Wire for Automotive Wireless Charging

A prominent European automotive Tier-1 supplier required an ultra-high-frequency Litz wire for next-generation EV wireless charging pads. The application demanded rigorous solvent resistance, high dielectric strength, and strict compliance with the UL94-V0 flame retardancy standard. Standard enamel insulation failed after environmental stress testing, and existing market alternatives carried prohibitive costs.

Our R&D team engineered an innovative material design: extruding thin-wall ETFE insulation directly over the high-frequency Litz wire bundle. Following a rigorous 1-year validation cycle and 2 years of field testing, our solution passed all mechanical, thermal, and electrical benchmarks. The custom wire has been in full mass production, drastically lowering system costs for our client while delivering total reliability.

SUCH CASES ARE PREVALENT IN OUR COMPANY, FULLY DEMONSTRATING OUR ADVANTAGES IN CUSTOM ENAMELED WIRE FORMULATION, RAPID PROTOTYPING, AND UNCOMPROMISING QUALITY CONTROL.

Ruiyuan Magnet Wire Manufacturing Facility 1

Frequently Asked Questions (FAQ)

Clear answers to engineering, procurement, quality assurance, and technical customization questions.

Q1 Can I get samples for testing before placing a batch order?

Yes. Samples are either free or charged based on specifications, but shipping costs are borne by the customer.

Q2 What is your standard delivery lead time?

Sample orders: 3–5 working days; bulk orders: completed within 15 working days after order confirmation.

Q3 What is your quality warranty policy?

Within 2 years, any quality-related issues will be covered by a one-time full replacement of defective products.

Q4 What is the full procurement process?

Submit inquiry with requirements → Sample making → Sample approval → Quotation → Proforma Invoice (PI) → PI confirmation → Payment arrangement → Production → Shipment.

Q5 What trade terms do you accept?

EXW, CPT, FOB, CIF, DDU, and DDP are all fully acceptable based on your logistics preference.

Q6 Can I customize products with my own logo, size, and packaging shape?

Yes, customized wire gauges, thermal classes, colors, and spooling shapes are available. MOQ is subject to negotiation.

Q7 What payment methods do you support?

We accept T/T (Telegraphic Transfer), D/P, L/C at sight, and PayPal for prototype orders.

Q8 Which courier services do you utilize for express delivery?

FedEx, DHL, TNT, and UPS, with discounted global express rates up to 80% off standard commercial tariffs.

Q9 How do your fine magnet wire products differ from competitors'?

We offer a full range of high-frequency magnet wire products (Litz wire, rectangular enameled wire, ultra-fine round wire, TIW) with short lead times and small-batch custom production to support engineering R&D phases.

Q10 Do you charge a tooling or mold fee for custom sizes?

A mold fee applies only for special customized wire geometries. The fee is fully refundable once order volume reaches agreed thresholds.

Q11 Do you enforce a Minimum Order Quantity (MOQ)?

Yes, MOQ is flexible and determined based on wire diameter specification, enamel alloy, and insulation construction.

Q12 What specialized testing equipment do you maintain?

Continuous laser scan diameter gauges, high-voltage spark testers, elongation & spring-back meters, dielectric breakdown testers, solderability testing baths, and micro-resistance meters.

Q13 What are your specific primary product categories?

Litz wire, rectangular enameled copper wire, ultra-fine magnet wire, self-bonding wire, TIW (triple-insulated wire), OCC copper wire, pure silver wire, and silver-plated copper wire.

Q14 Which market sectors are your products best suited for?

High-efficiency high-frequency power electronics, EV on-board chargers (OBC), wireless charging coils, medical devices, robotics, micro servo motors, 5G telecom, and precision audio components.

Q15 Which global regions do you export to?

Major export markets include North America, Western & Northern Europe, South Korea, Japan, India, and Southeast Asia.

Q16 How do your solutions offer superior cost-effectiveness?

By providing direct manufacturer pricing, comprehensive technical verification, short sample lead times, and single-source purchasing across diverse wire formats.

Q17 How do you guarantee corporate technical confidentiality?

We routinely sign legally binding Non-Disclosure Agreements (NDAs) prior to receiving customer drawings or technical specifications.

One-Stop Solution For Precision Magnet Wire & Micro-Coils

100% Operational & Delivering On-Time. As a trusted manufacturer of ultra-fine magnet wires, we combine first-class quality control with flexible custom manufacturing.

Contact Our R&D Engineers
