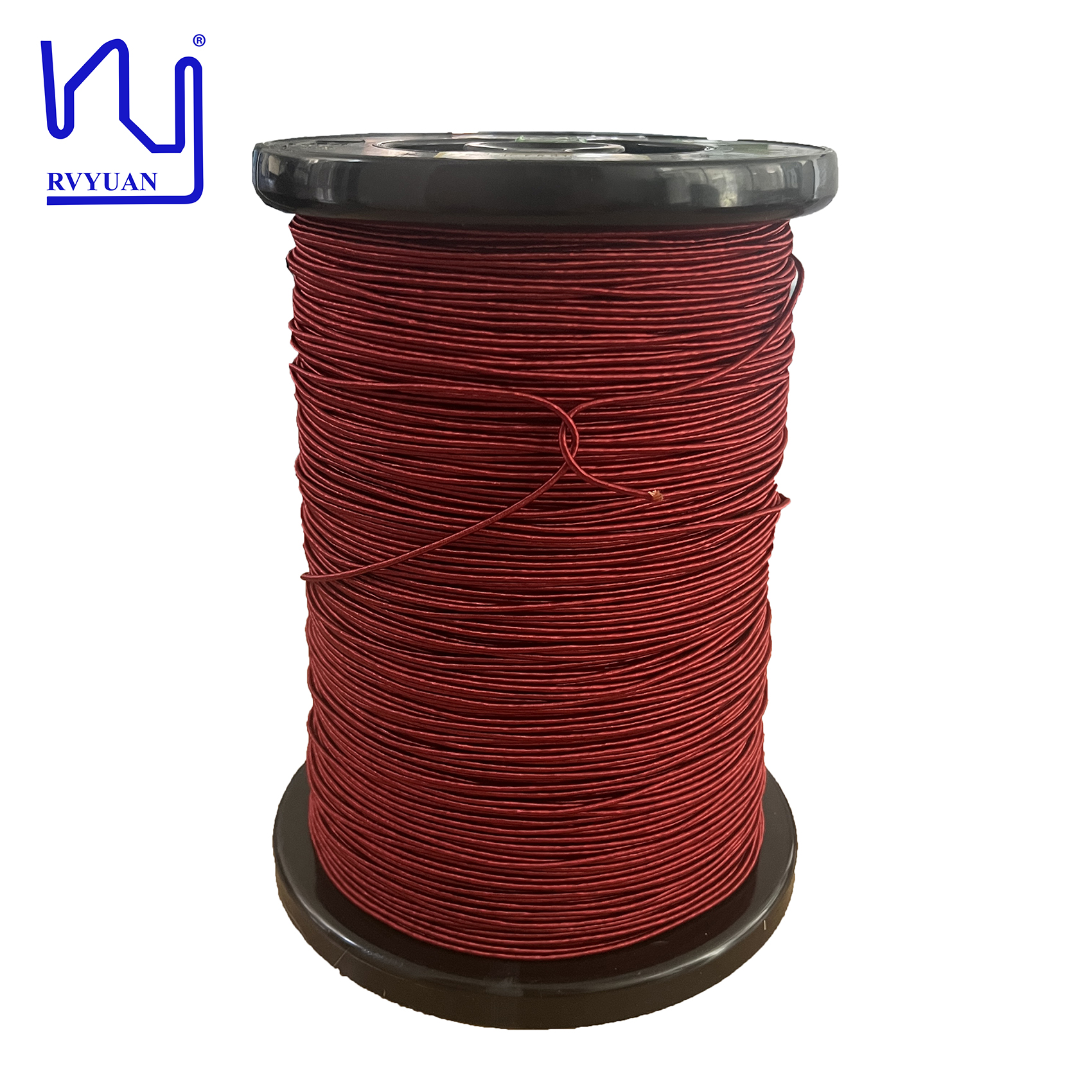

ETFE Extruded Litz Wire For Ultrasonic Device Coil Winding

The Industrial & Engineering Evolution of ETFE Extruded Litz Wire in Ultrasonic Applications

In modern high-frequency power electronics and electro-acoustic transduction, ultrasonic devices operating between 20 kHz and multi-Megahertz frequencies present extreme operational environments. Ultrasonic transducers, plastic welding generators, medical phacoemulsification handpieces, and high-power sonic cleaning systems rely heavily on custom-wound electromagnetic coils to generate intense mechanical resonance.

Traditional single-strand magnet wires or simple cotton/silk-served Litz wires frequently succumb to severe thermal degradation, dielectric breakdown, or chemical solvent erosion under continuous duty cycles. **ETFE Extruded Litz Wire for Ultrasonic Device Coil Winding** has emerged as the definitive global standard to solve these critical engineering limitations, delivering unmatched mechanical durability, chemical resistance, and electro-thermal efficiency.

Overcoming High-Frequency Skin & Proximity Effects in Ultrasonic Coils

When alternating current flows through a solid conductor at high frequencies, the magnetic field produced by the current forces the electron density outward toward the outer perimeter—a physical phenomenon known as the **skin effect**. At 40 kHz (a standard ultrasonic welding frequency), the skin depth of copper drops to approximately 0.33 mm. As frequency rises into the Megahertz regime for medical ultrasound, skin depth shrinks even further.

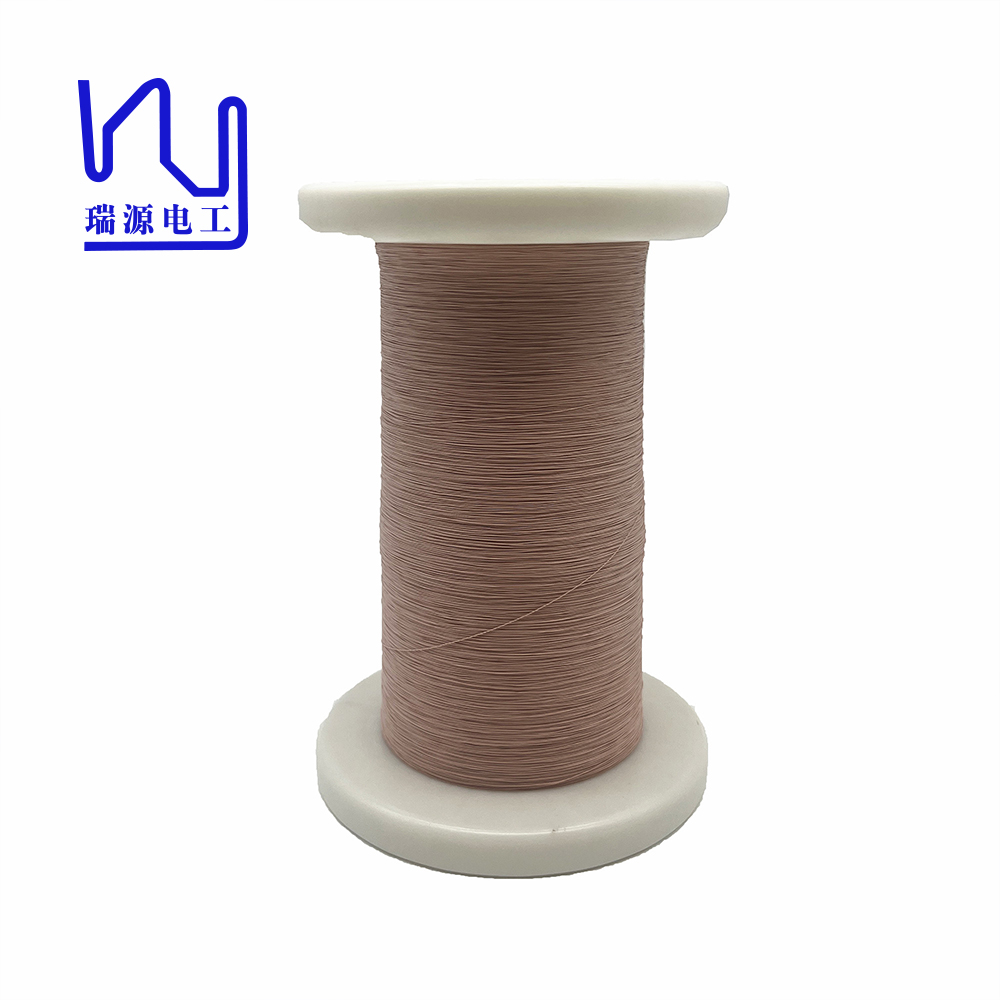

Solid copper wire under these conditions experiences massive effective resistance ($R_{ac}$), converting energy into unwanted parasitic heat rather than acoustic energy. Furthermore, tight coil pack designs induce **proximity effects**, where adjacent turns skew current distributions even more severely. **Litz wire** resolves this by dividing the total current among hundreds or thousands of individually insulated fine enamel strands (e.g., 0.03mm, 0.05mm, or 0.071mm diameter). By twisting these strands in precise geometric transposition patterns, every strand occupies all positions across the conductor cross-section equally, maintaining low $R_{ac}/R_{dc}$ ratios.

Comparative Matrix: Outer Insulation Options for High-Frequency Conductors

Selecting the appropriate secondary outer jacket is crucial when designing high-performance ultrasonic device coils. Below is an engineering comparison between standard serving/taping methods and modern extruded ETFE fluoropolymer insulation:

Target Industrial & Commercial Application Scenarios

Extruded ETFE Litz Wire is designed specifically for demanding electromagnetic devices where thermal management, spatial constraints, and extreme electrical stress intersect:

Frequently Asked Questions (FAQ)

Get quick, detailed answers regarding procurement, customization options, technical specifications, and shipping policies.
