Featured High-Frequency Winding Wires
Engineered for maximum dielectric strength, thermal endurance, and complex coil geometries.
Industrial & Commercial Landscape: Ultrasonic Device Coil Winding
The modern industrial automation and medical electronics sectors are undergoing a massive transformation driven by high-frequency acoustic engineering. Ultrasonic devices—ranging from surgical scalpels and diagnostic transducers to high-power industrial ultrasonic plastic welders, ultrasonic metal seamers, and semiconductor cleaning tanks—rely fundamentally on high-performance inductive coils. At the core of these electromagnetic systems is the magnet wire, which must endure relentless electric fields, rapid harmonic vibrations, and aggressive thermal cycles.
Historically, standard Grade 1 or Grade 2 enameled wires required additional sleeve insulation, tape wrapping, or margin tape to meet breakdown voltage safety standards (IEC 60950, IEC 62368, and IEC 664-1). However, as modern ultrasonic transducers demand severe compacting, reduced acoustic damping, and higher power densities, traditional insulated methods add excessive bulk, raise manufacturing thermal resistance, and introduce vibration-induced dielectric chafing.

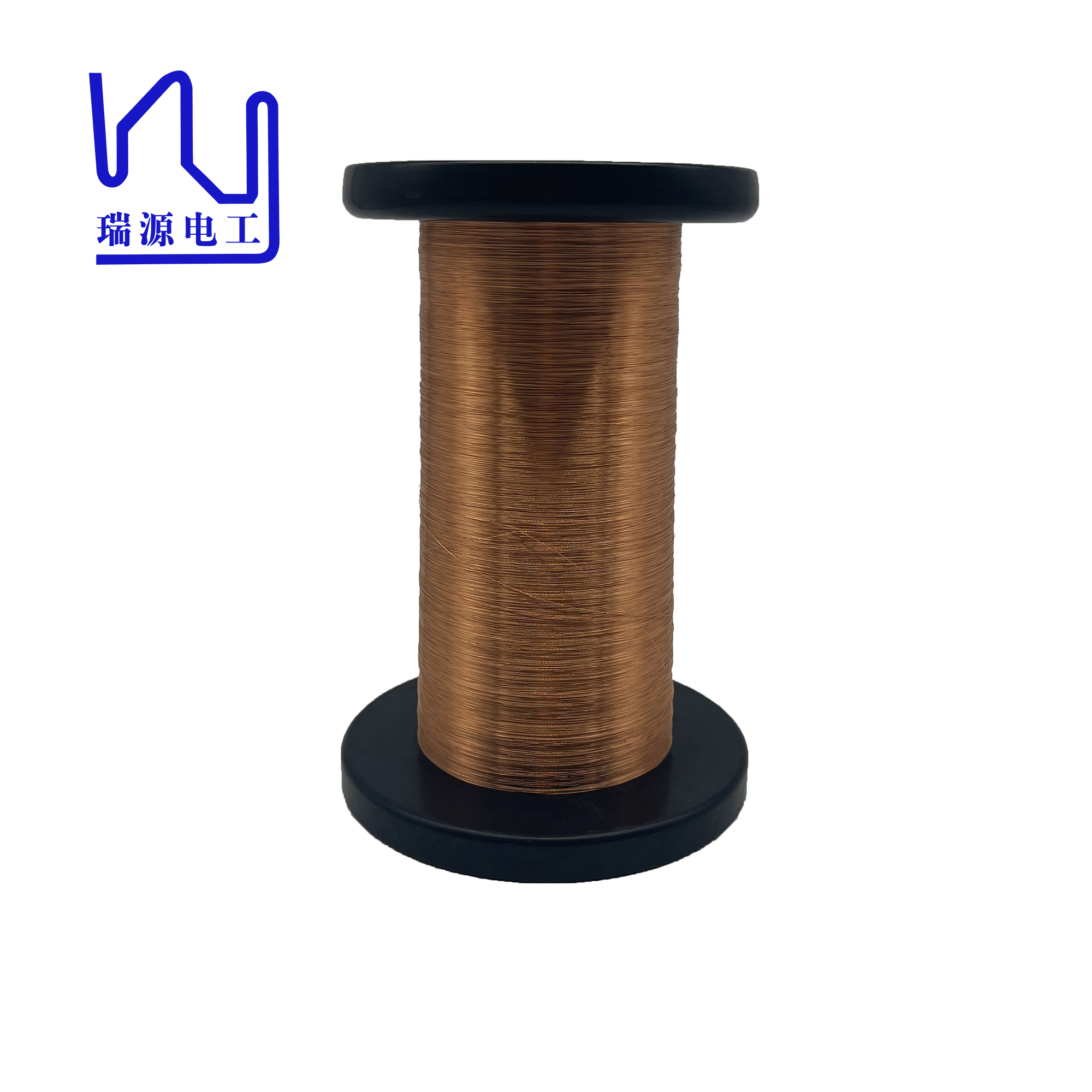

This is where FIW6 (Fully Insulated Zero-Defect Solderable Enameled Copper Wire Grade 6) emerges as a game-changing solution for ultrasonic device coil winding. Designed with multi-layered, thick-film enamel coatings, FIW6 delivers extraordinarily high breakdown voltage strength (exceeding 15 kV depending on conductor diameter) without increasing external sleeve volume. Its seamless, zero-defect insulation structure eliminates corona discharge and partial discharge events during ultra-high frequency acoustic resonance.
Zero-Defect Insulation
Continuous inline spark testing ensures 100% pinhole-free insulation over thousands of meters, preventing intra-coil short circuits under severe ultrasonic surge voltages.
Class H (180°C) Thermal Rating
Engineered with Modified Polyurethane and Polyimide/Polyamide-imide topcoats to withstand intense continuous localized heating within high-duty ultrasonic transducers.
Direct Solderability
Allows rapid, automated termination at 375°C to 410°C without mechanical stripping, safeguarding delicate fine conductors during automated winding assembly.
Deep Technical Breakdown: Why FIW6 Outperforms Traditional Magnet Wires
Ultrasonic device coils operate in a challenging electro-acoustic environment. Operating frequencies typically span between 20 kHz and 120 kHz, creating pronounced skin effects and proximity losses. Furthermore, piezoelectric stack drives require high sinusoidal voltages to excite dynamic mechanical oscillation.
Standard enamels (FIW3, FIW4, Grade 2) often succumb to dielectric breakdown at localized hot spots caused by high voltage gradients between adjacent turns. FIW6 features an optimized thick film coating (Grade 6) that dramatically increases the creepage distance and clearance margin across every single winding turn.
- Thermal Class: Class 180 (H) / Solderable at 390°C
- Breakdown Voltage: Up to >15,000 V (Grade 6 High-Film Insulation)
- Standards Compliance: IEC 60317-56, IEC 60950-1 (Annex U), UL 2353
- Conductor Diameter Range: 0.040 mm – 0.400 mm
- Pinhole Rate: 0 Pin-holes / 6m at high-voltage spark test
- Key Mechanical Property: High Flexibility & Friction-resistant Topcoat
Deep Application Scene Analysis in Modern Industry
FIW6 fully insulated wire is not merely a replacement for standard wire—it is an enabling technology that allows engineers to shrink coil volume, optimize resonant Q-factors, and eliminate inter-layer insulation tape entirely. Below are four key application domains where FIW6 is driving industrial breakthroughs:
1. Medical Ultrasonic Surgical Scalpels & Imaging Transducers
In minimally invasive surgery, ultrasonic scalpels vibrate at 55.5 kHz to simultaneously cut and coagulate tissue. The driving transformer and transducer coils contained inside the ergonomic handpiece must be ultralight, non-heating, and completely failure-proof. FIW6 provides absolute electrical isolation between high-voltage drive turns while maintaining microscopic coil footprints that fit directly into handpieces without risk of dielectric punch-through.
2. High-Power Ultrasonic Plastic & Metal Welding Stacks
Industrial ultrasonic welders operating at 15 kHz to 40 kHz deliver thousands of acoustic watts to bond EV battery tabs, automotive wiring harnesses, and thermoplastic assemblies. High internal coil temperatures combined with heavy mechanical vibration can rapidly degrade cheap magnet wire enamels. FIW6's Class H thermal rating combined with robust mechanical film toughness prevents micro-fretting wear, eliminating costly production line shutdowns.
3. Precision Semiconductor Ultrasonic Cleaning Tanks
Semiconductor wafer processing equipment utilizes multi-frequency megasonic cleaning transducers (400 kHz to 1+ MHz). Driving these transducers demands extreme voltage fidelity. FIW6 magnet wire ensures minimal dielectric loss tangent, reducing internal reactive power losses and maintaining pristine harmonic frequency stability during continuous 24/7 duty cycles.
4. Automotive Smart Ultrasonic Sensors & LiDAR Cleaning Coils
Modern Autonomous Driving (ADAS) relies on ultrasonic parking sensors and acoustic surface-cleaning modules for optical cameras and LiDAR lenses. These automotive components must satisfy stringent AEC-Q200 standards, exhibiting zero electrical failure under extreme thermal shock (-40°C to +150°C). FIW6’s multi-coat polyurethane-polyimide structure guarantees thermal-stress immunity.
Market Trends & Future Innovations in Ultrasonic Coil Winding
As power electronics transition to wide-bandgap semiconductors such as Silicon Carbide (SiC) and Gallium Nitride (GaN), ultrasonic power supplies can now drive transducers at substantially higher operating frequencies and sharper switching slopes (dV/dt). While higher frequencies allow transducers to become smaller, they subject coil windings to severe transient voltage surges.
Future trends in ultrasonic device coil winding highlight three critical vectors:
- Hybrid FIW-Litz Configurations: Combining stranded litz wire construction with an extruded or multi-dip FIW outer coating to simultaneously eliminate high-frequency skin/proximity losses and provide solid voltage breakdown resistance exceeding 10kV.
- Fully Automated High-Speed Bobbinless Winding: Modern high-speed automatic winding machinery exerts extreme tension and high bending forces. FIW6’s enhanced elongation property (over 15-25% without coating cracking) ensures that fast automated winding line speeds do not degrade insulation integrity.
- Complete Elimination of Interlayer Insulation Tape: By leveraging FIW6's reinforced voltage insulation rating, transformer and coil designers can eliminate interleaving insulation tapes completely, slashing winding labor time by 40% while achieving superior thermal dissipation.
About Tianjin Ruiyuan Electric Material Co., Ltd.
Customer Oriented, Innovation Brings More Value — It is not just a slogan, but a core part of our corporate DNA.
Tianjin Ruiyuan Electric Material Co,. Ltd. (Ruiyuan) was established in 2002. In the past 20 years, we have been thinking one constant question: “How to Satisfy Customers?” That drive has led us to expand product lines from fine enameled copper wire to litz wire, USTC, rectangular enameled copper wire, triple insulated wire, and guitar pickup wire—covering 6 main types with over 20 kinds of magnet wire. Here you will enjoy a One-Stop Purchase Service with cost-effective pricing, where quality is the last thing you need to worry about. We wish to help you reduce costs, save valuable R&D time, and establish long-term Win-Win strategic cooperation.
Unlike ordinary magnet wire providers who only offer fixed off-the-shelf size ranges, we are a custom solution provider. This requires us to be deeply professional across magnet wires, insulation engineering, and your specialized end-use applications, such as ultrasonic device coil winding.
Engineering Success Story: Custom Insulation Breakthrough
One of our European automotive customers required high-frequency litz wire for wireless charging systems requiring exceptional solvent resistance and a flame-retardant rating following UL94-V0. Standard insulation could not satisfy these requirements, and market alternatives were exorbitantly expensive. Our R&D team proposed an innovative solution: extrusion of ETFE insulation over high-frequency litz wire. Following a rigorous 1-year verification cycle, the project passed all tests and has been in full mass production ever since.
Frequently Asked Questions (FAQ)
Find answers to common questions about our procurement, customization, and technical wire capabilities.
Comprehensive Product Catalog
Explore our wide selection of specialty magnet wires and custom stranded conductors.
Ready to Optimize Your Ultrasonic Devices?
Contact our engineering support team today to request free sample spools of FIW6 fully insulated wire or to consult on custom high-frequency winding solutions.
