Flat Enameled Copper Wire For Medical Equipment Coil Assembly

Featured Flat & Specialized Wires for Medical Coil Assemblies

Explore our top-tier magnet wires tailored for ultra-compact medical coils, high-frequency surgical transducers, and critical medical imaging systems.

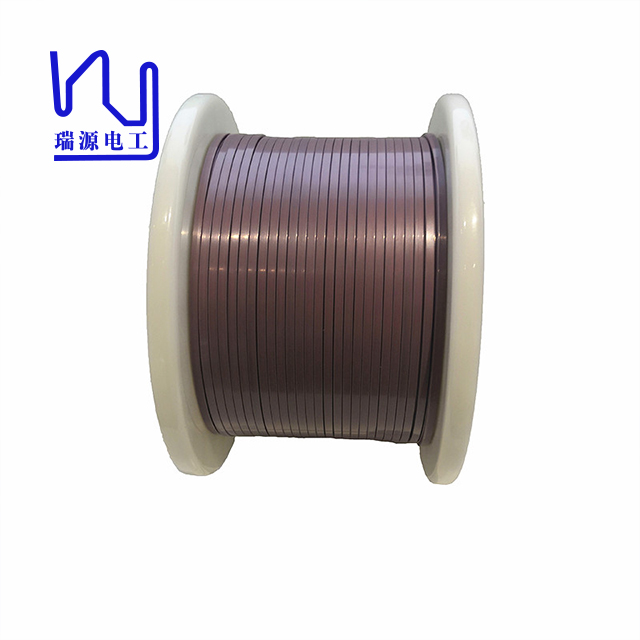

Custom PEEK wire, rectangular enameled copper winding wire for medical coil assembly

Custom PEEK wire, rectangular enameled copper winding wire View Details

0.05mm*50 USTC High Frequency Nylon Served Silk Covered Litz Wire for medical equipment

0.05mm*50 USTC High Frequency Nylon Served Silk Covered Litz Wire View Details

1UEW155 Color litz wire blue 0.125mm*2 copper stranded wire for medical coil assembly

1UEW155 Color litz wire blue 0.125mm*2 copper stranded wire View Details

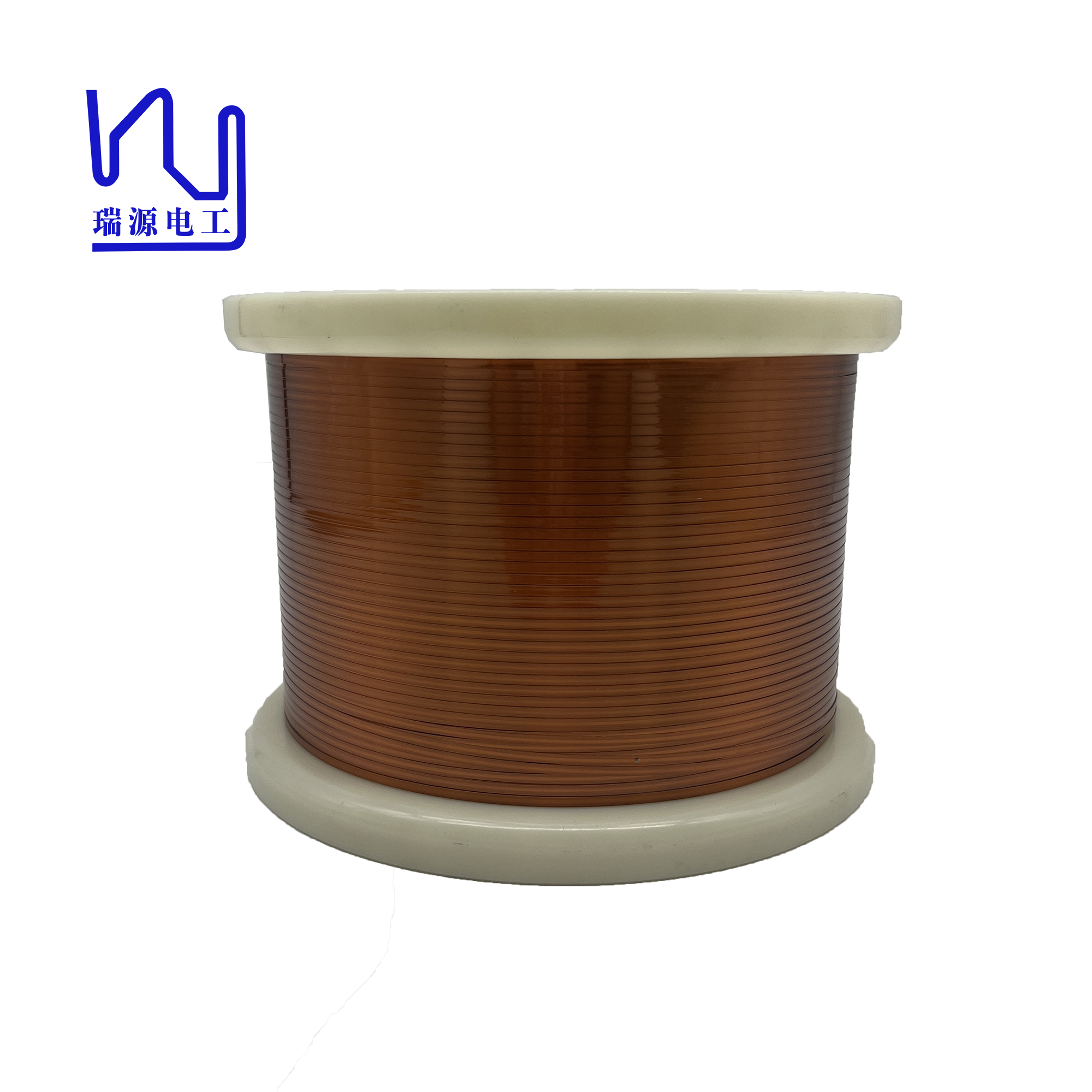

SFT-AIW 220 0.1mm*2.0mm Enameled Flat Copper Wire Solid Conductor for medical coil assembly

SFT-AIW 220 0.1mm*2.0mm Enameled Flat Copper Wire Solid Conductor View Details

Industrial Overview: Flat Enameled Copper Wire in Medical Coil Manufacturing

The modern healthcare technology sector is undergoing a rapid paradigm shift toward non-invasive diagnostics, ultra-high-resolution imaging, high-frequency electrosurgery, and miniaturized implantable therapeutics. At the heart of these technological advancements lies the electromagnetic coil assembly—a critical component responsible for energy transfer, signal transduction, magnetic field generation, and precision motion control. Within this domain, Flat Enameled Copper Wire (also designated as rectangular magnet wire or enameled copper strip) has emerged as the definitive gold standard for medical coil assemblies.

Unlike traditional round magnet wires, flat enameled copper wires eliminate the inherent void spaces present in round wire bundle topologies. In medical equipment coil assemblies, space is typically at a premium. Modern surgical tools, diagnostic probes, and wearable or implantable medical devices require maximum electromagnetic output within extremely confined geometry. By offering a copper fill factor exceeding 85% to 90%, flat enameled copper wire maximizes conductor mass per unit volume, dramatically lowering DC resistance and minimizing thermal dissipation—a paramount prerequisite for patient safety and device longevity.

Maximizing Slot Fill Factor

Rectangular profiles eliminate air gaps inherent to round wire windings, yielding up to 90% space utilization and enabling ultra-compact medical coil architectures.

Optimized Thermal Conductivity

Enhanced turn-to-turn contact surface area promotes efficient conductive heat transfer, lowering hot-spot temperatures in encapsulated medical equipment coils.

High-Frequency Efficiency

Mitigates high-frequency skin and proximity losses in electrosurgical generators, high-field MRI systems, and transcutaneous wireless power transfers.

Deep-Dive Application Scenarios for Flat Enameled Copper Wire Coils

The unique mechanical, electrical, and thermal attributes of rectangular enameled wire unlock unprecedented engineering capabilities across diverse healthcare hardware domains:

1. Magnetic Resonance Imaging (MRI) & NMR Gradient Coils

In ultra-high-field MRI machines (3T, 7T, and research-grade systems), gradient coils demand exceptional mechanical rigidity under massive Lorentz forces and tight dimensional tolerances to guarantee spatial spatial magnetic accuracy. Flat enameled copper wires with high-temp polyimide (AIW/PI) or PEEK insulation provide pristine insulation integrity under rapid gradient switching while maintaining thermal stability during continuous patient scans.

2. Electrosurgical Units (ESU) & RF Ablation Generators

Electrosurgery equipment operates at radio frequencies ranging from 300 kHz to several megahertz to cut tissue and coagulate bleeding cleanly. High-frequency power transformers inside ESUs utilize custom rectangular Litz wires or ultra-thin flat enameled wires to reduce high-frequency AC copper losses, preventing transformer overheating during intense surgical procedures.

3. Wireless Power Transfer (WPT) for Implantable Devices

Next-generation active implantable medical devices (AIMDs)—including Ventricular Assist Devices (VADs), deep brain stimulators, and cardiac pacemakers—rely on Transcutaneous Energy Transfer (TET) coils. Super-fine flat copper wire wound with micro-precision allows subcutaneous receiver coils to remain ultra-thin, flexible, and thermally benign while maximizing energy transmission efficiency through skin tissue.

4. Surgical Robotics & Miniature Servo Actuators

Robotic-assisted surgical platforms (such as laparo-endoscopic surgical arms) require high torque density in micro-sized motor housings. Flat enameled copper wire enables precision tooth-winding on stator cores, dramatically increasing slot fill factors and operational torque while keeping motor form factors lightweight and nimble.

Material Engineering: Custom Insulations & Ultra-Pure Conductors

Medical applications impose stringent safety, bio-compatibility, chemical resistance, and thermal tolerance standards. Tianjin Ruiyuan Electric Material Co., Ltd. synthesizes advanced metallization techniques with high-performance engineering polymers to tailor magnet wires for demanding medical environments.

PEEK-Insulated Wires

Polyetheretherketone (PEEK) extrusion coating delivers extraordinary dielectric breakdown strength, chemical resistance against aggressive medical sterilants (steam autoclaving, hydrogen peroxide plasma), and outstanding mechanical abrasion resistance.

SFT-AIW 220 / 240 Class

Polyamide-imide overcoated with polyesterimide (AIW) supports extreme continuous working temperatures up to 220°C–240°C, offering robust overload protection in high-power medical diagnostic transformers.

6N OCC Pure Copper

Utilizing 99.9999% Ohno Continuous Cast (OCC) oxygen-free copper conductors reduces micro-void grain boundaries, providing superior signal fidelity in delicate medical ultrasound and audio diagnostic transducers.

Company Profile: Tianjin Ruiyuan Electric Material Co., Ltd.

Tianjin Ruiyuan Electric Material Co,. Ltd. (Ruiyuan) was established in 2002. In the past 20 years, we have been thinking one question: "How Satisfy Customer"—a drive that propels us to expand product lines from fine enameled copper wire to Litz wire, USTC, rectangular enameled copper wire, triple insulated wire, and guitar pickup wire (6 main types with over 20 kinds of magnet wire). Here you will enjoy One-Stop Purchase Service with cost-effective prices, where quality is the last thing you need to concern. We wish to help you reduce costs, save time, and establish long-term Win-Win cooperation.

What we have been doing over 20 years is pursuing our operational philosophy: "Customer Oriented, Innovation brings more Value". That is not just a slogan; it is part of our DNA. Unlike ordinary magnet wire providers that only offer off-the-shelf size ranges, we are a comprehensive solution provider—requiring us to be deeply professional in magnet wires, high-tech insulation materials, and your exact end-use medical and industrial applications.

Case Study: Customized Engineering Breakthrough

One of our European medical & high-tech automotive customers needed a specialized high-frequency Litz wire for wireless energy transfer. The application required exceptional solvent resistance and a strict flame-retardant rating of UL94-V0. Standard commercial insulation layers were inadequate, and competitive market quotes were prohibitively high.

Following extensive technical reviews, Ruiyuan’s R&D team engineered an innovative custom solution: ETFE insulation extruded directly onto the surface of high-strand Litz wire. This engineering breakthrough perfectly satisfied all chemical, flame, and dielectric requirements. After a rigorous one-year verification and testing cycle, the project transitioned smoothly into full-scale mass production.

7-10 Days

Average Delivery Lead Time

90%

European & North American Clients (PTR, ELSIT, STS)

95%

Client Repurchase Rate

99.3%

Satisfaction Rate (Class A Supplier by German OEM)

Manufacturing Infrastructure & Precision Quality Control

Our state-of-the-art production facility incorporates laser micrometer monitoring, continuous high-voltage spark testing, and precision tension control to guarantee zero-defect magnet wire manufacturing for critical medical applications.

Ruiyuan Factory Precision Production Line 1

Ruiyuan Factory Precision Production Line 2

Ruiyuan Factory Spooling and Packaging 6
