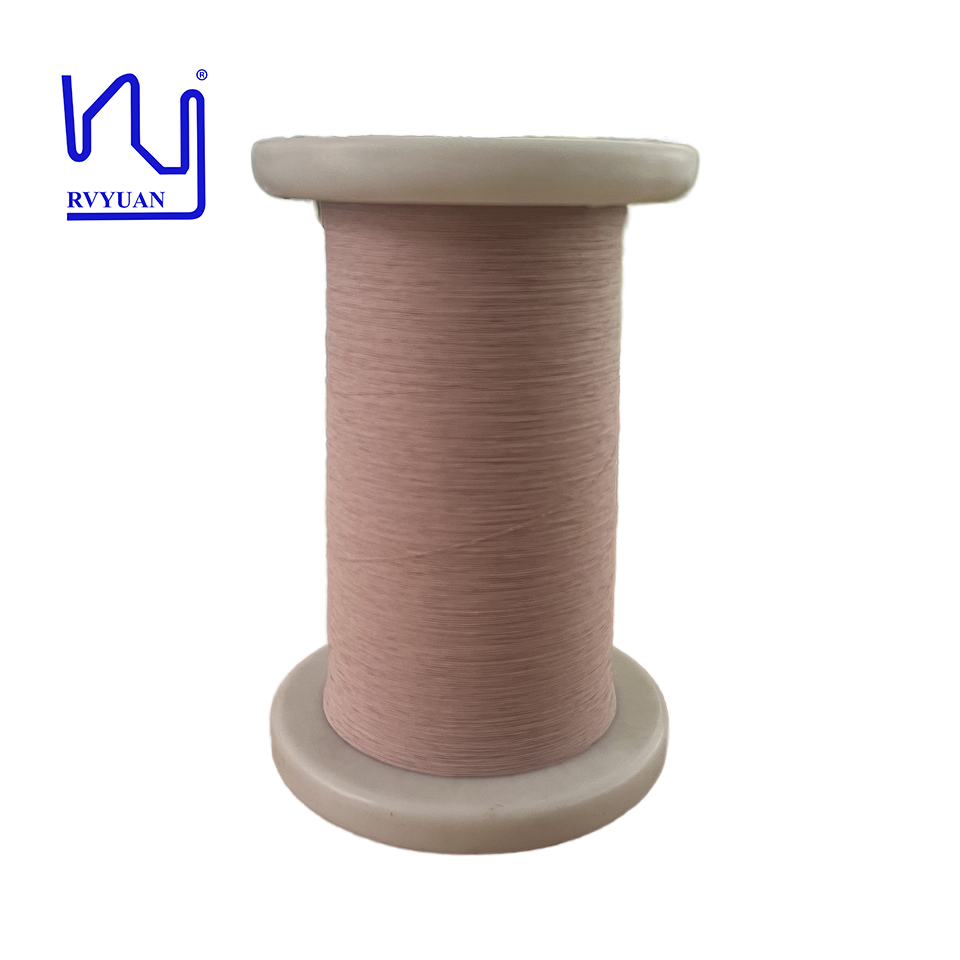

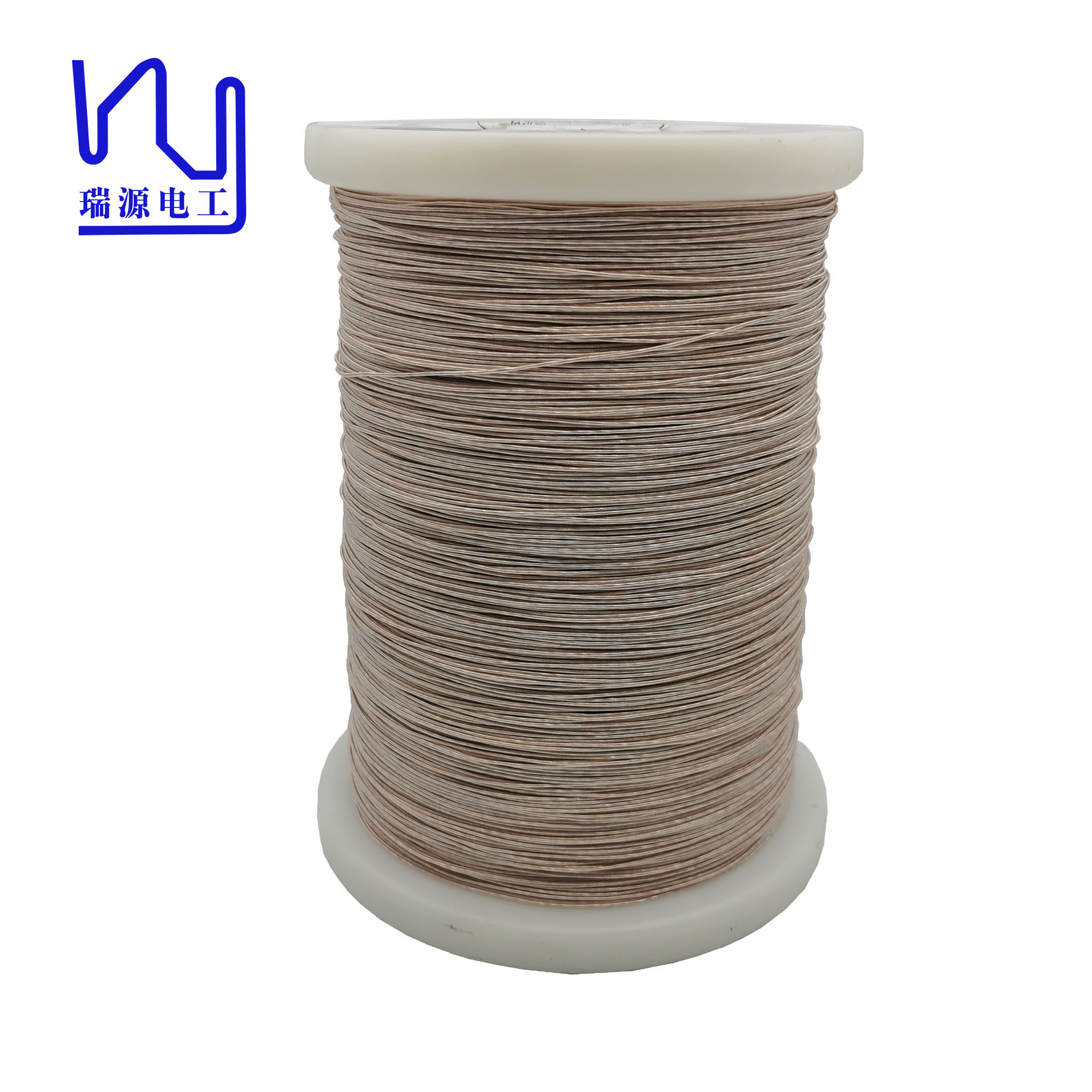

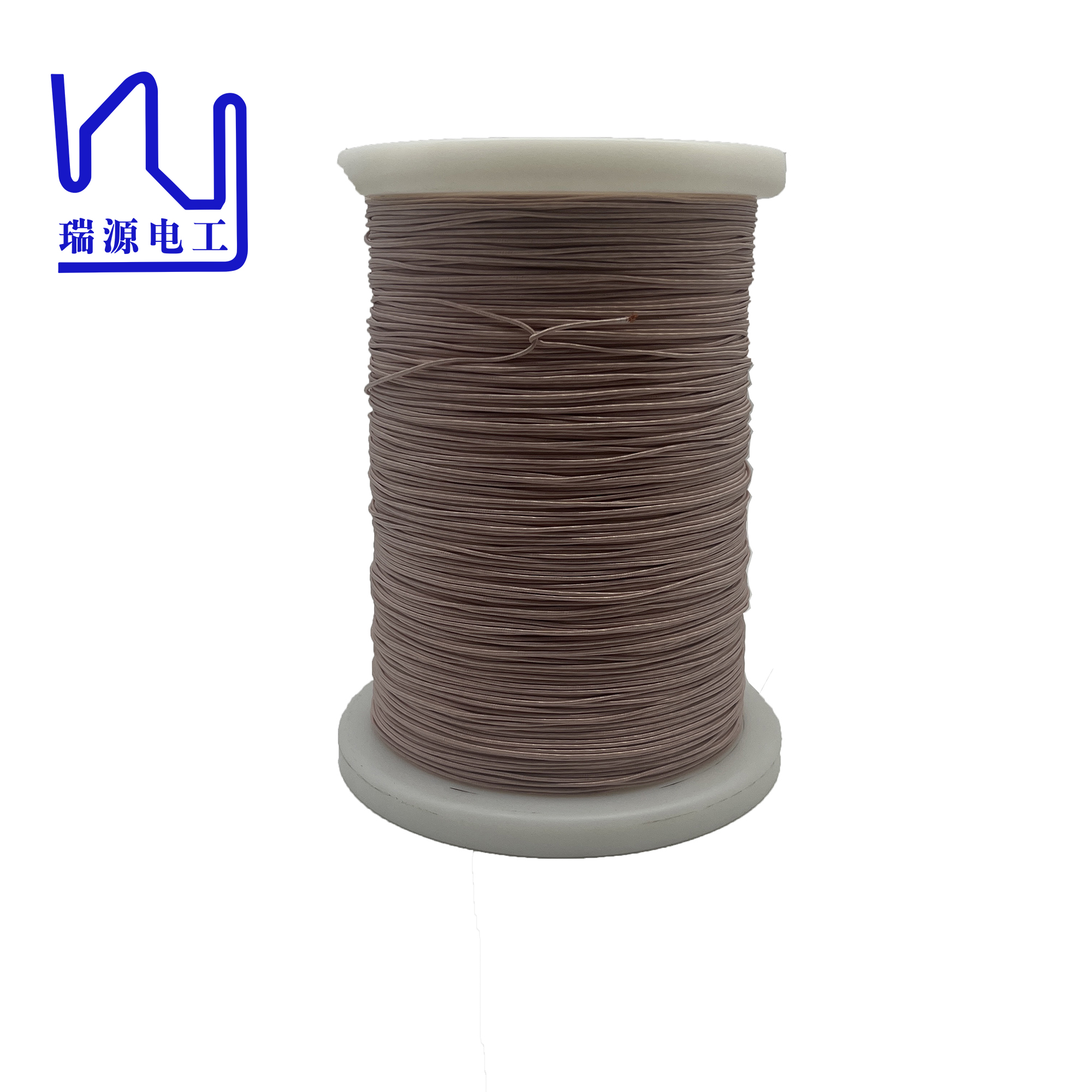

Featured High-Frequency Winding Solutions
Explore our specialized range of high-frequency Litz wires and ultra-fine enameled conductors engineered specifically for demanding ultrasonic resonant circuits and electro-acoustic transducers.
1. Metallurgy of Ohno Continuous Casting (OCC) Copper in High-Q Ultrasonic Coils
Ultrasonic devices rely on electro-acoustic transducers (such as piezoelectric ceramic stacks or magnetostrictive cores) to convert high-frequency electrical energy into ultra-high-speed mechanical vibrations. The performance, acoustic output density, and operating stability of these systems depend fundamentally on the quality of the magnetic coil winding. Standard Oxygen-Free High Conductivity (OFHC) copper wire contains thousands of crystal grain boundaries per meter. In high-frequency alternating magnetic fields (ranging from 20 kHz to several MHz), these grain boundaries act as micro-capacitive barriers and scattering sites for electron transport.
Invoking the metallurgy invented by Professor Atsumi Ohno, the Ohno Continuous Casting (OCC) process uses heated molds to cast molten pure copper at controlled solidification rates, resulting in a single-crystal structure where individual grains extend uninterrupted up to hundreds of meters. For ultrasonic device coil winding, OCC copper offers distinct physical advantages:
Zero Grain Boundary Barriers
By eliminating inter-granular boundaries, OCC copper drastically reduces signal distortion, phase lag, and localized micro-heating caused by electron scattering during rapid sinusoidal polarity switching.
Maximum Electrical Conductivity
OCC copper achieves pure electrical conductivities exceeding 101.5% to 103% IACS (International Annealed Copper Standard), lowering internal $I^2R$ resistance and improving transducer drive efficiency.
Superior Fatigue Resistance
Ultrasonic coils suffer intense mechanical resonance and thermal expansion stresses. The single-crystal lattice of OCC wire prevents stress-induced lattice fatigue and work-hardening cracking.
2. Commercial & Industrial Landscape: Market Drivers for Ultrasonic Devices
The global market for ultrasonic technology is expanding rapidly driven by medical diagnostic advancements, EV battery manufacturing, precision industrial cleaning, and non-destructive testing (NDT). As ultrasonic transducers are driven at higher power densities and smaller physical footprints, traditional magnet wire meets thermal and electrical degradation limits.
High-Power Ultrasonic Welding & Cutting
Industrial ultrasonic metal welders (used in EV battery tab joining) and plastic bonders require excitation coils capable of carrying continuous heavy currents without thermal runaway. OCC Litz wire structures minimize high-frequency skin effect and proximity effect, reducing coil operating temperatures by 15°C to 30°C compared to conventional magnet wire.
Medical Ultrasound & Micro-Acoustic Imaging
High-resolution ultrasonic probe transducers demand minimal signal distortion and exceptional signal-to-noise ratios (SNR). OCC pure copper conductors ensure crisp acoustic pulse generation, minimal phase noise, and pinpoint acoustic beam steering required for intravascular diagnostic imaging and surgical scalpels.
Precision Ultrasonic Cleaning & Sonochemistry
Substrate-level cleaning in semiconductor manufacturing and cavitation-driven chemical reactors operate continuously for thousands of hours. The thermal stability and low AC-resistance of OCC coil windings prevent resonant frequency drift caused by heating, maintaining constant acoustic amplitude.
Non-Destructive Testing (NDT) & Aerospace
Phased array NDT sensors require uniform impedance across all channel windings. OCC single-crystal wire guarantees precise electrical consistency across manufacturing lots, eliminating impedance mismatch between individual channels.
3. Comprehensive Material Comparison: OCC vs. OFC vs. ETP Copper
To understand why global Tier-1 equipment manufacturers specify Ohno Continuous Casting copper for ultrasonic transducer coils, consider the structural and electro-dynamic performance breakdown:
| Performance Parameter | ETP Copper (C11000) | OFC Copper (C10200) | OCC Copper (Tianjin Ruiyuan 6N) |
|---|---|---|---|
| Purity Level | 99.90% | 99.95% - 99.99% | 99.9999% (6N Pure) |
| Grain Boundaries per Meter | ~10,000 to 50,000 | ~1,000 to 5,000 | ~0.008 (Single Crystal per 125m) |
| Electrical Conductivity (% IACS) | 100.0% | 101.0% | 102.5% - 103.0% |
| High-Frequency AC Loss ($R_{ac}/R_{dc}$) | High (Inter-grain hysteresis) | Moderate | Ultra-Low (Smooth electron flow) |
| Bending & Flexural Endurance | Standard | Good | Exceptional (No grain fracture) |
| Coil Quality Factor ($Q$-Factor) | Baseline | +15% Improvement | +45% Peak Resonant Performance |
4. Real-World Engineering Case: Resolving Thermal & Solvent Resistance in High-Frequency Coils
Case Study: High-Reliability Litz Wire Innovation for European Client
A leading European automotive electronics client required high-frequency Litz wire for resonant drive systems and wireless charging modules. The application demanded flawless performance against aggressive cleaning solvents, alongside flame retardancy strictly compliant with the UL94-V0 standard. Standard polyurethane or polyester enamels failed under chemical stress, while alternative high-end market solutions presented unviable cost structures.
Tianjin Ruiyuan’s engineering team proposed a breakthrough custom construction: extruding specialized ETFE (Ethylene Tetrafluoroethylene) insulation directly over customized high-frequency Litz wire conductors. After rigorous 12-month environmental thermal cycling and solvent immersion tests, the solution achieved 100% compliance. The project transitioned to full mass production, serving as a benchmark for high-reliability coil designs in extreme operational environments.
5. About Tianjin Ruiyuan Electric Material Co., Ltd.
Established in 2002, Tianjin Ruiyuan Electric Material Co., Ltd. (Ruiyuan) has dedicated over 20 years to advancing high-performance magnet wire technology. Guided by our operational philosophy—“Customer Oriented, Innovation brings more Value”—we have grown into a premier global solution provider for fine enameled copper wire, OCC continuous casting conductors, high-frequency Litz wire, silk-covered USTC wire, rectangular flat wire, and triple-insulated wire (TIW).
Rather than offering off-the-shelf catalog sizes alone, Ruiyuan acts as an engineering partner. We assist engineers in optimizing wire geometry, strand counts, insulation dielectric strength, and thermal ratings specifically for acoustic transducers, medical imaging arrays, and high-frequency power electronics.
