Overview: PFA Insulated Litz Wire in South Korea's High-Tech Industrial Ecosystem
South Korea stands as a global powerhouse for advanced electronic manufacturing, automotive innovation, and high-frequency power distribution. As South Korean Tier-1 manufacturers expand their capabilities across electric vehicle (EV) platforms, semiconductor manufacturing equipment, urban air mobility (UAM), and high-efficiency wireless power transfer (WPT) systems, the demand for specialized winding wires has increased dramatically. Among high-performance magnet wires, PFA (Perfluoroalkoxy) Insulated Litz Wire represents the pinnacle of electrical and thermal insulation technology.
Litz wire, formed by braiding multiple individually insulated copper strands, effectively minimizes skin effect and proximity effect losses at high operating frequencies (ranging from 10 kHz to several MHz). When combined with an extruded outer jacket or tape layer made of PFA fluoropolymer, the resulting wire achieves extraordinary thermal endurance (continuous service up to 260°C), near-zero moisture absorption, absolute chemical inertness, and exceptional breakdown voltage resistance.
Thermal Class 260°C
Continuous thermal operation without insulation degradation, making it ideal for severe duty automotive and aerospace environments.
Minimised AC Losses
Optimized multi-strand Litz design suppresses high-frequency skin effect and proximity effect in 100kHz - 3MHz switching circuits.
Chemical Inertness
Complete resistance to harsh industrial solvents, aggressive potting compounds, oils, and automotive coolant fluids.
Dielectric Strength
High breakdown voltage performance enabling compact, high-density magnetic designs with minimal creepage distance requirements.
Industrial hubs across South Korea—including the Capital Region (Gyeonggi-do, Incheon), Ulsan, and Gyeongsangbuk-do—require reliable sourcing of high-grade PFA Litz wire to power next-generation transformers, high-frequency inductors, traction motor coils, and megawatt-level power converters. Matching strict Korean industrial compliance standards (such as KS C standards and ISO/IATF 16949 automotive criteria), leading international suppliers work side-by-side with local R&D centers to deliver custom-extruded fluoropolymer magnet wires.
Key Industrial Applications & Local Engineering Demand in South Korea
The strategic push toward decarbonization and high-density micro-electronics in South Korea has created specialized demands for PFA Litz wire across several critical industrial sectors:
1. Next-Generation Automotive Electrification (EV / HEV Powertrains)
South Korean automotive giants and their component suppliers are pioneering 800V high-voltage architectures for fast-charging electric vehicles. High-power On-Board Chargers (OBC), DC-DC converters, and main inverter transformers demand magnetic components that operate under extreme frequency stress and elevated temperatures. PFA insulated Litz wire provides the required dielectric margin, flame retardancy (UL94-V0 compliance), and mechanical robustness against vibration and chemical exposure in motor bays.
2. High-Frequency Wireless Power Transfer (WPT) & EV Charging
Wireless charging pads for consumer electronics, industrial Automated Guided Vehicles (AGVs), and passenger EVs are rapidly expanding in urban Korean centers. Operating at resonant frequencies between 85 kHz and 13.56 MHz, WPT transmitter and receiver coils rely heavily on custom-structured Litz wire. Extruded PFA jackets ensure consistent spacing, mechanical durability, weather resistance, and ultra-low dielectric loss ($\epsilon_r \approx 2.1$).
3. Semiconductor Wafer Fabrication & Plasma RF Generators
In South Korea's world-leading semiconductor manufacturing facilities (located in Suwon, Hwaseong, and Pyeongtaek), RF power generators and plasma match networks operate continuously under extreme thermal and electromagnetic conditions. PFA Litz wire is extensively used in high-power RF matching inductors and high-voltage transformers where chemical off-gassing must be zero and breakdown resistance must remain uncompromised.
4. High-Power Renewable Energy & Industrial Heating
From solar string inverters to high-frequency induction heating equipment used in steel manufacturing and glass processing, PFA insulated stranded copper wires handle high RMS currents while maintaining structural integrity across extreme temperature cycles.
Technical Specification Comparison: PFA vs. Alternative Insulation Materials
Choosing the correct insulation material for high-frequency Litz wire depends on temperature limits, breakdown voltage, chemical resistance, and cost efficiency. Below is an engineering comparison of standard fluoropolymer and tape insulation options used in modern magnetic design:
| Insulation Material | Continuous Temp Class | Dielectric Constant ($\epsilon_r$) | Solvent & Chemical Resistance | Flame Rating | Primary Application Area |
|---|---|---|---|---|---|
| PFA (Extruded) | 200°C – 260°C | 2.1 | Outstanding (Universal) | UL 94 V-0 | High-Temp EV, Semi RF, Severe Industrial |
| ETFE (Extruded) | 155°C – 180°C | 2.6 | Very Good | UL 94 V-0 | TIW Winding, Automotive Wireless Charging |
| FEP (Extruded) | 200°C | 2.1 | Excellent | UL 94 V-0 | Sensors, Medical, High-Freq Transformers |
| Polyimide / PI Tape | 220°C – 240°C | 3.4 | Good | UL 94 V-0 | Taped High Voltage EV Stranded Wire |
| Silk / Nylon Served | 130°C – 155°C | 3.8 | Moderate | HB | Audio Coils, Consumer Electronics |
Specialized Magnet & Stranded Wire Portfolio
Custom engineered wire solutions tailored for severe environments and precise electrical specifications
Solving Extreme Solvent & Flame Retardancy Challenges for Automotive Chargers
One of our leading European OEM clients needed a high-frequency Litz wire for automotive wireless charging modules. The application demanded exceptional solvent resistance during potting, combined with a strict UL94-V0 flame rating. Conventional insulating materials failed to meet these joint requirements without excessive material costs.
After thorough analysis, our R&D engineering team proposed an innovative custom solution: Direct extrusion of ETFE/PFA insulation over the stranded Litz core. This approach achieved total solvent resistance, flame retardancy, and electrical reliability. Following a thorough 1-year verification cycle and 2-year qualification timeline, the solution entered successful mass production, demonstrating our rapid customization expertise for high-spec global projects.
Company Profile: Tianjin Ruiyuan Electric Material Co., Ltd.

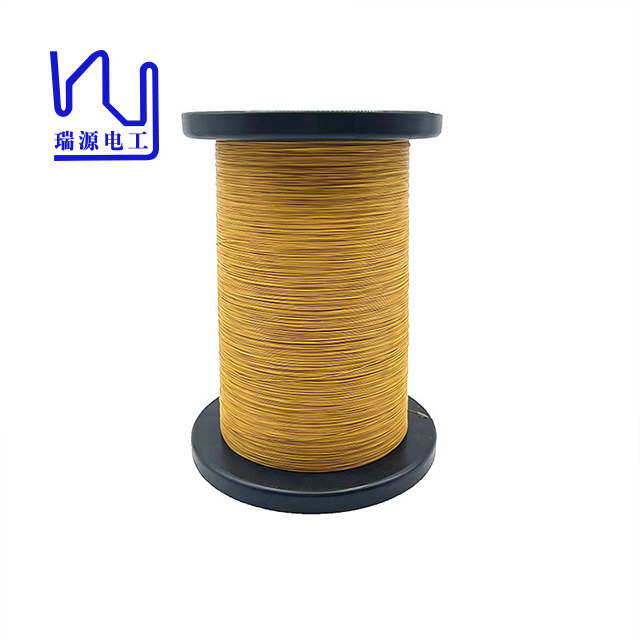

Established in 2002, Tianjin Ruiyuan Electric Material Co., Ltd. (Ruiyuan) has spent over two decades tackling a single core question: "How do we bring maximum value and total satisfaction to our clients?" This relentless pursuit of excellence has expanded our manufacturing portfolio from standard fine enameled copper wires to sophisticated Litz wire, USTC served wire, rectangular magnet wire, triple-insulated wire (TIW), and precision guitar pickup wire—encompassing 6 main categories and over 20 distinct wire variations.
Operating under our foundational philosophy, "Customer Oriented, Innovation Brings More Value," Ruiyuan does not merely supply static wire sizes. We serve as a comprehensive engineering solution partner, offering deep expertise in wire geometry, fluoropolymer insulation materials (PFA, ETFE, FEP, PI), and specific electromagnetic application challenges.
Advanced Production & Manufacturing Facilities
Our state-of-the-art manufacturing plants are equipped with high-precision strand braiders, clean extrusion lines, and rigorous in-line automated quality testing setups.
Frequently Asked Questions (FAQ)
Everything you need to know about purchasing, custom specifications, and quality guarantees
One-Stop Engineering Solution
As a global leader in high-frequency magnet wire manufacturing, we provide outstanding customer service, certified material quality, and dependable on-time delivery. From initial prototype design to mass production, our team ensures your technical requirements are satisfied without compromise.
Exquisite Quality, Built for Customer Success
Ruiyuan brings together top technical talent and dedicated management professionals. Guided by long-term vision and technical expertise, our team serves as your guaranteed partner for premium magnet wire solutions in South Korea and across the globe.
Explore What RUIYUAN Can Do For You
We warmly welcome engineers, procurement managers, and business leaders from South Korea and around the world. Partner with us to achieve seamless manufacturing win-win goals.
