Polyurethane Enameled Wire For Aerospace Electronic Component Winding

1. Industrial Landscape: The Growing Demand for Polyurethane Enameled Wire in Aerospace Engineering

The global aerospace electronics market is undergoing a seismic shift towards miniaturization, higher power density, and uncompromised operating safety. Modern avionics—ranging from sophisticated unmanned aerial vehicle (UAV) flight controllers and radar processing units to satellite power distribution sub-assemblies—depend heavily on custom magnetic components. At the heart of these micro-transformers, pulse inductors, gyroscopic sensors, and electric actuators lies high-performance magnet wire.

Among various film insulating enamels, **Polyurethane Enameled Wire (commonly categorized as UEW or PEW)** has emerged as an indispensable material choice for micro and ultra-fine electronic component winding in aerospace applications. Unlike traditional high-temperature polyimide or polyesterimide coatings that require chemical stripping or abrasive mechanical removal prior to soldering, Polyurethane magnet wire possesses a unique chemical structure that decomposes cleanly at standard soldering temperatures (360°C to 410°C). This direct solderability eliminates damage to delicate conductor strands, reduces production cycles, and ensures zero micro-fracturing at coil termination points—a crucial factor in flight-critical electronics subject to severe operational vibration.

2. Technical Breakdown: Chemical, Electrical, and Thermal Dynamics

Polyurethane enamel coatings are synthesized through the reaction of polyisocyanates with polyols. When applied to high-purity oxygen-free copper (OFC) or silver-plated copper conductors, polyurethane forms a highly flexible, uniform, and concentric insulating sheath. For aerospace electronic component winding, Tianjin Ruiyuan utilizes modified polyurethane blends—often overcoated with nylon (polyamide) or self-bonding thermoplastic resins—to enhance mechanical toughness, thermal stability (Class 155°C, 180°C, and 200°C), and chemical solvent resistance.

Key Material Performance Attributes for Avionics:

• Thermal Ratings & Overload Margin: Available in Class F (155°C) and Class H (180°C) standards. Modified polyurethane wire withstands transient thermal spikes typical of aerospace power surges without insulation degradation.
• Concentricity & Pin-Hole Rate Zero-Defect Tolerance: Utilizing advanced inline laser micrometers and continuous high-voltage spark testing, our polyurethane wire guarantees zero pinholes over thousands of continuous meters, crucial for preventing turn-to-turn micro-arcing in low-pressure, high-altitude flight regimes (Paschen's Law compliance).
• Frequency-Dependent AC Resistance Reduction: Combined with Litz wire bundling configurations (e.g., USTC or nylon-served strands), polyurethane magnet wire effectively mitigates the skin effect and proximity effect in high-frequency aerospace transformers operating from 100 kHz up to several Megahertz.
• Self-Bonding (Thermo-plastic / Solvent-Activated) Options: Enables bobbinless coil structures for ultra-compact aerospace gyroscopes, voice coil actuators, and lightweight flight instrument displays, maximizing slot fill factor and reducing component weight.

3. Deep Dive into Critical Aerospace Application Scenarios

The versatility of polyurethane enameled wire spans virtually every electronic sub-system on modern commercial aircraft, military avionics, low-Earth-orbit (LEO) satellite constellations, and space exploration probes.

A. Avionic Micro-Transformers & Pulse Transformers

Flight control computers (FCC) and digital engine control units (FADEC) rely on miniaturized signal and pulse transformers for isolated data transmission. Fine polyurethane wire (gauges ranging from 0.025mm to 0.12mm) allows dense, multi-layer toroidal windings with exact turns ratios, while its direct solderability ensures reliable soldering on automated surface-mount device (SMD) headers without thermal stress.

B. High-Precision Resolvers & Synchro Sensors

In fly-by-wire flight control surfaces, electro-mechanical actuators monitor flap and rudder positions using angular resolvers. These resolvers demand ultra-consistent wire diameter and superb flexibility to withstand continuous rotational micro-vibrations. Polyurethane enameled copper wire ensures tight coil alignment, consistent inductance, and low harmonic distortion.

C. LEO Satellite Power Distribution Systems & Solar Regulators

Spaceborne power converters operate under extreme spatial constraints. Polyurethane-insulated high-frequency Litz wire (such as silk-covered 2USTC-F or ETFE-extruded Litz wire) dramatically reduces copper losses in high-frequency planar transformers and buck-boost inductors, enabling satellite solar power systems to achieve efficiency ratings above 98%.

D. Radar RF Signal Processing & High-Q Filter Coils

Active Electronically Scanned Array (AESA) radars require RF inductors with high Quality Factors (Q-factor). The ultra-low dielectric dissipation factor of polyurethane magnet wire minimizes energy losses in RF matching networks and microwave filter chokes.

4. Future Trends in Aerospace Polyurethane Magnet Wire (2025–2035)

As the aerospace domain advances toward Urban Air Mobility (eVTOL), hybrid-electric regional aircraft, and dense low-Earth-orbit satellite constellations, magnet wire technology must evolve to satisfy increasingly demanding thermal and dielectric stress profiles. Key trends shaping the future of Polyurethane Enameled Wire for aerospace winding include:

• Nano-Composite Modified Polyurethane Resins: Incorporating inorganic nano-fillers (such as silica or alumina) into the polyurethane polymer matrix to enhance resistance to corona discharge (partial discharge resistance) in high-voltage avionics operating above 1,000 V AC.
• Ultra-Fine Micro Conductors (Down to 0.010mm / AWG 58): Meeting the extreme miniaturization demands of next-generation surgical space robotics, micro-actuators, and sub-gram aerospace sensor coils.
• Hybrid Litz Constructions: Combining ultra-fine polyurethane enameled copper or silver strands with high-performance fluoropolymer tapes (PI/PET/ETFE) to deliver low skin-effect losses alongside Class H thermal longevity.
• Green Manufacturing & Solvents Compliance: Transitioning to eco-friendly, zero-VOC solvent bases during enamel coating processes without sacrificing adhesion, elongation, or dielectric breakdown parameters.

Comprehensive Aerospace Winding Wire Portfolio

Explore our full line of original polyurethane, litz, self-bonding, and insulated round magnet wires engineered to solve complex high-frequency and space-constrained winding challenges.

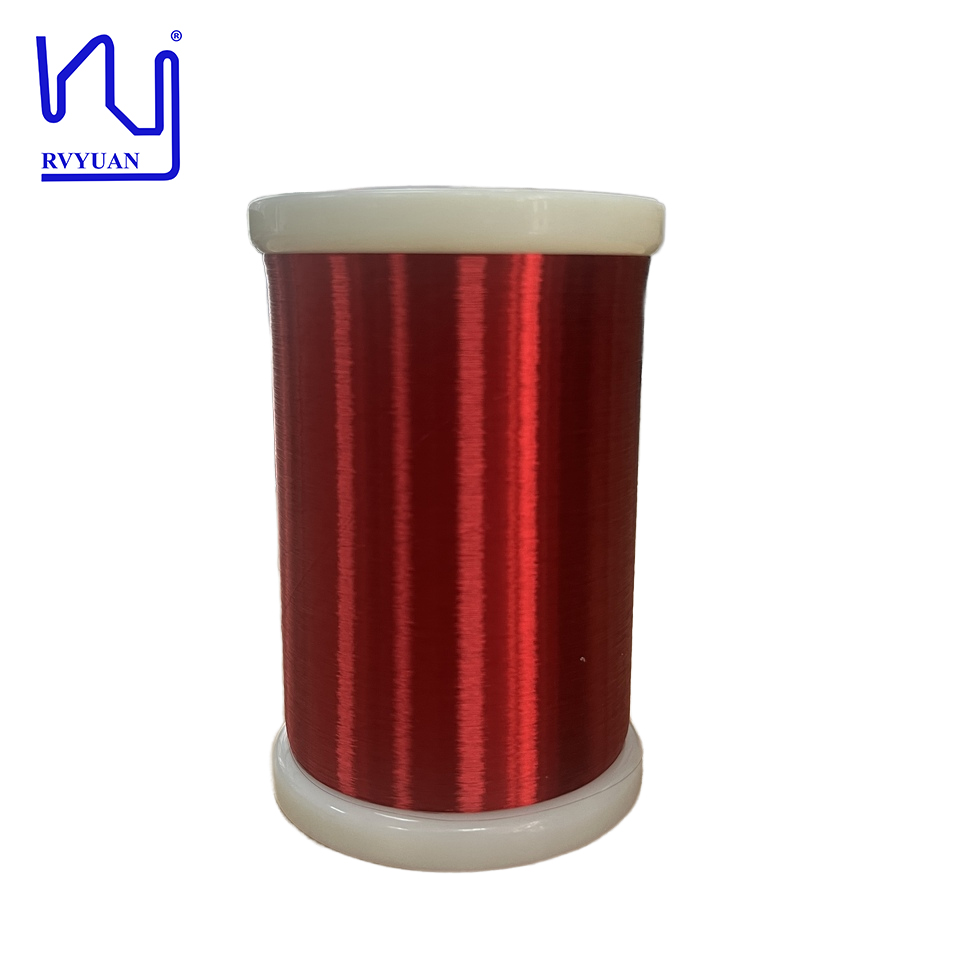

Customized Self-Bonding Red 0.035mm Wire for Aerospace Micro-Actuators

View Details

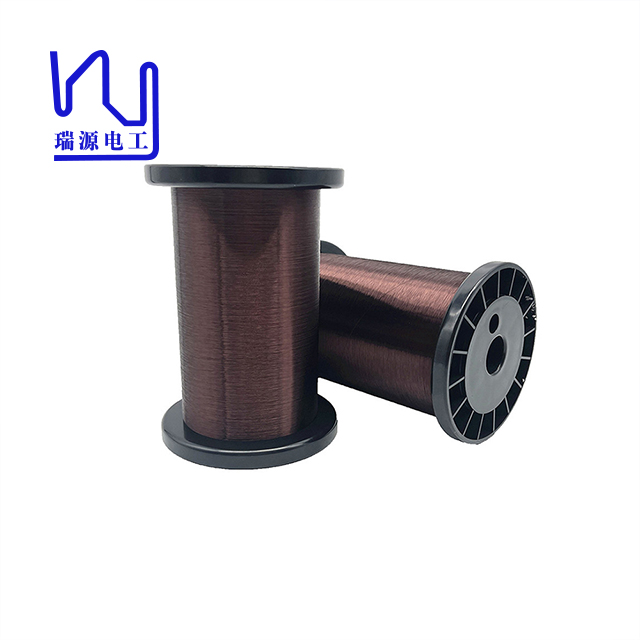

42 AWG Polyurethane Plain Enameled Copper Wire for Sensor Coils

View Details

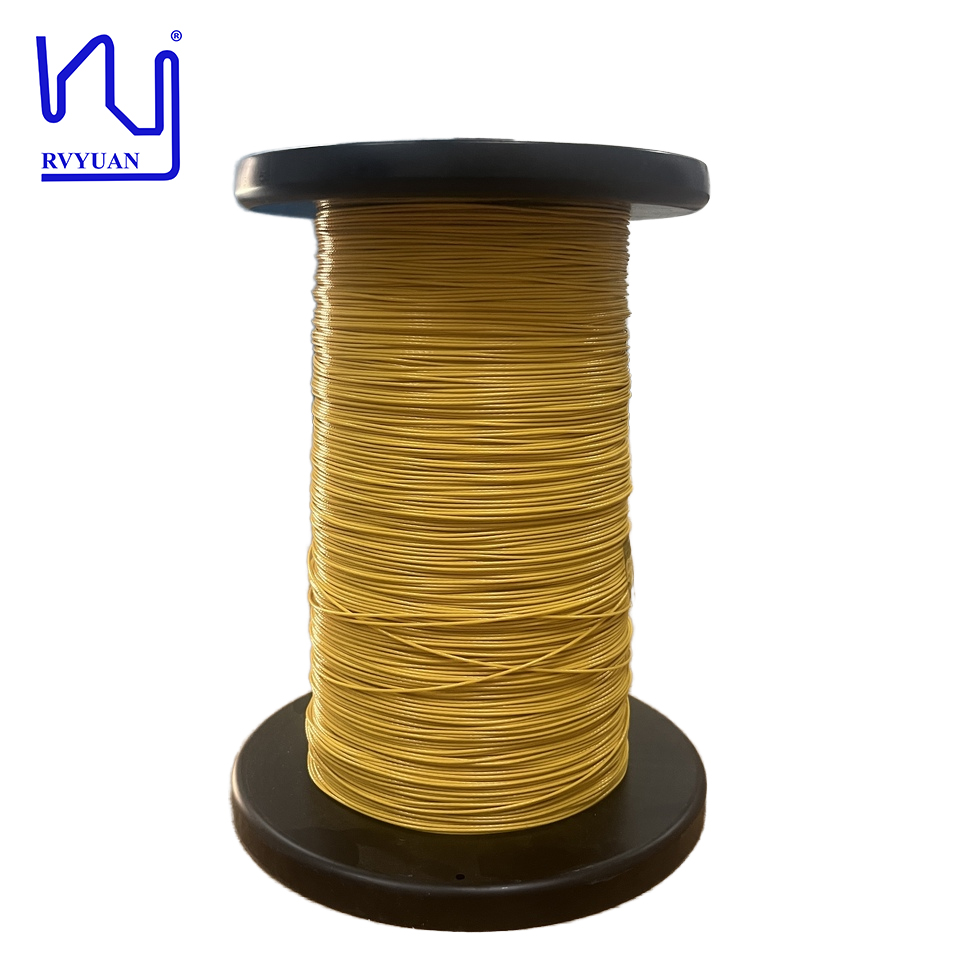

FTIW-F Class 155 0.27mmx7 ETFE Polyurethane Litz Wire for Avionics

View Details

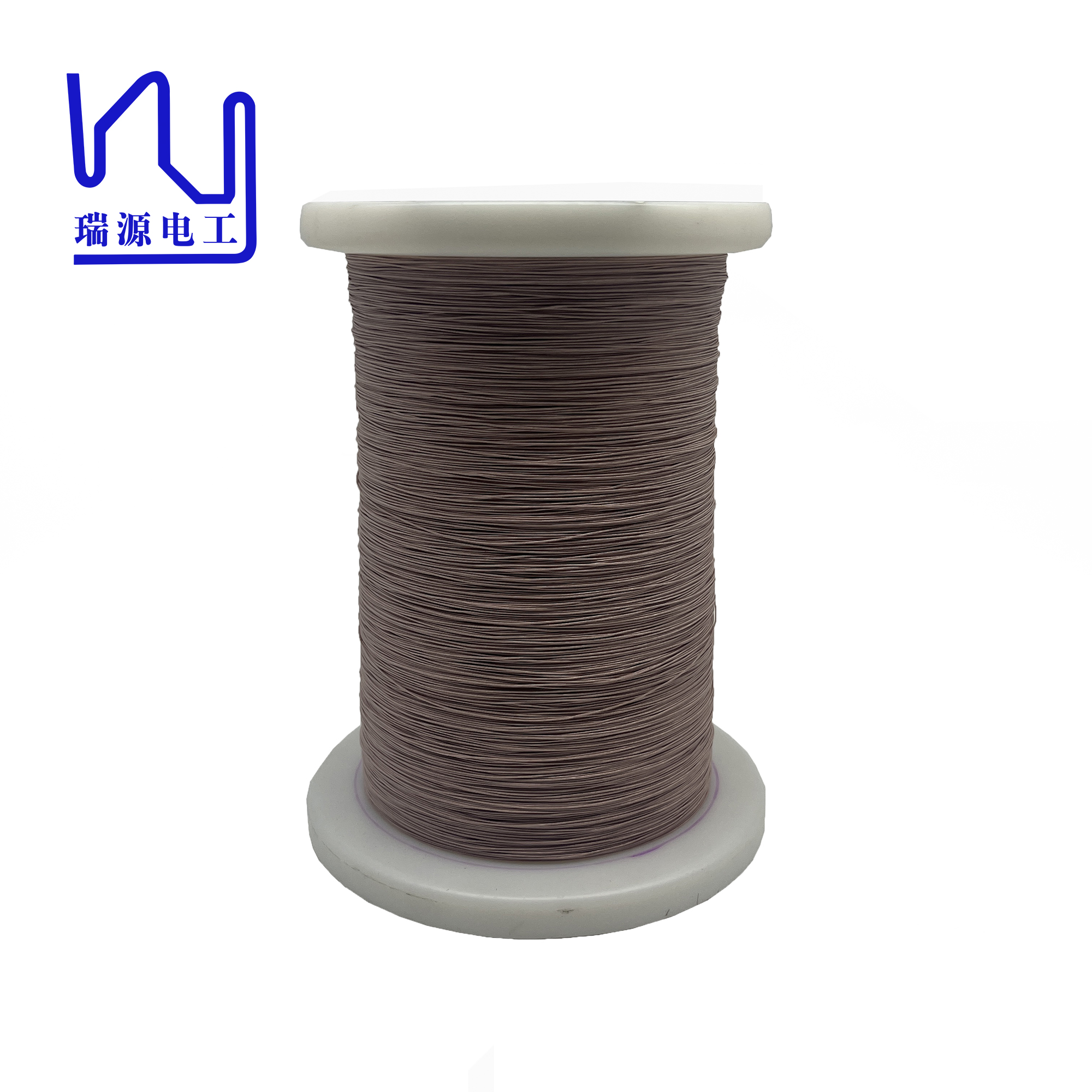

1USTC-F 0.05mm 60 Strands Silk Covered Polyurethane Litz Wire

View Details

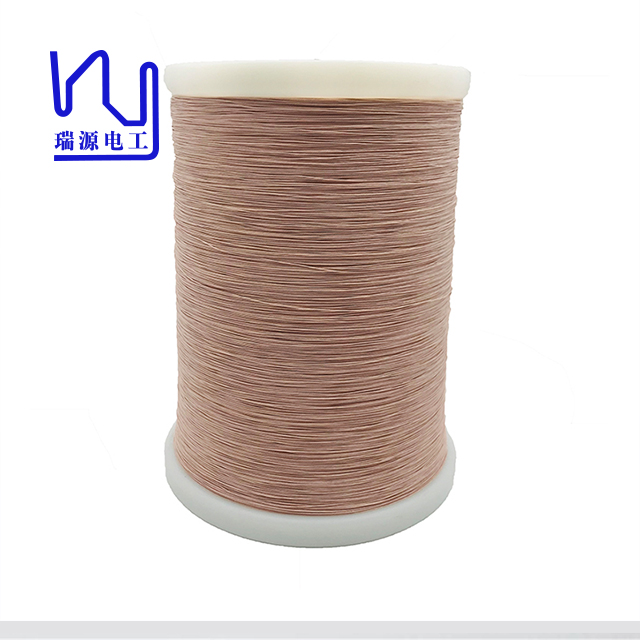

USTC-F 0.08mmx17 Nylon Served Stranded Polyurethane Litz Wire

View Details

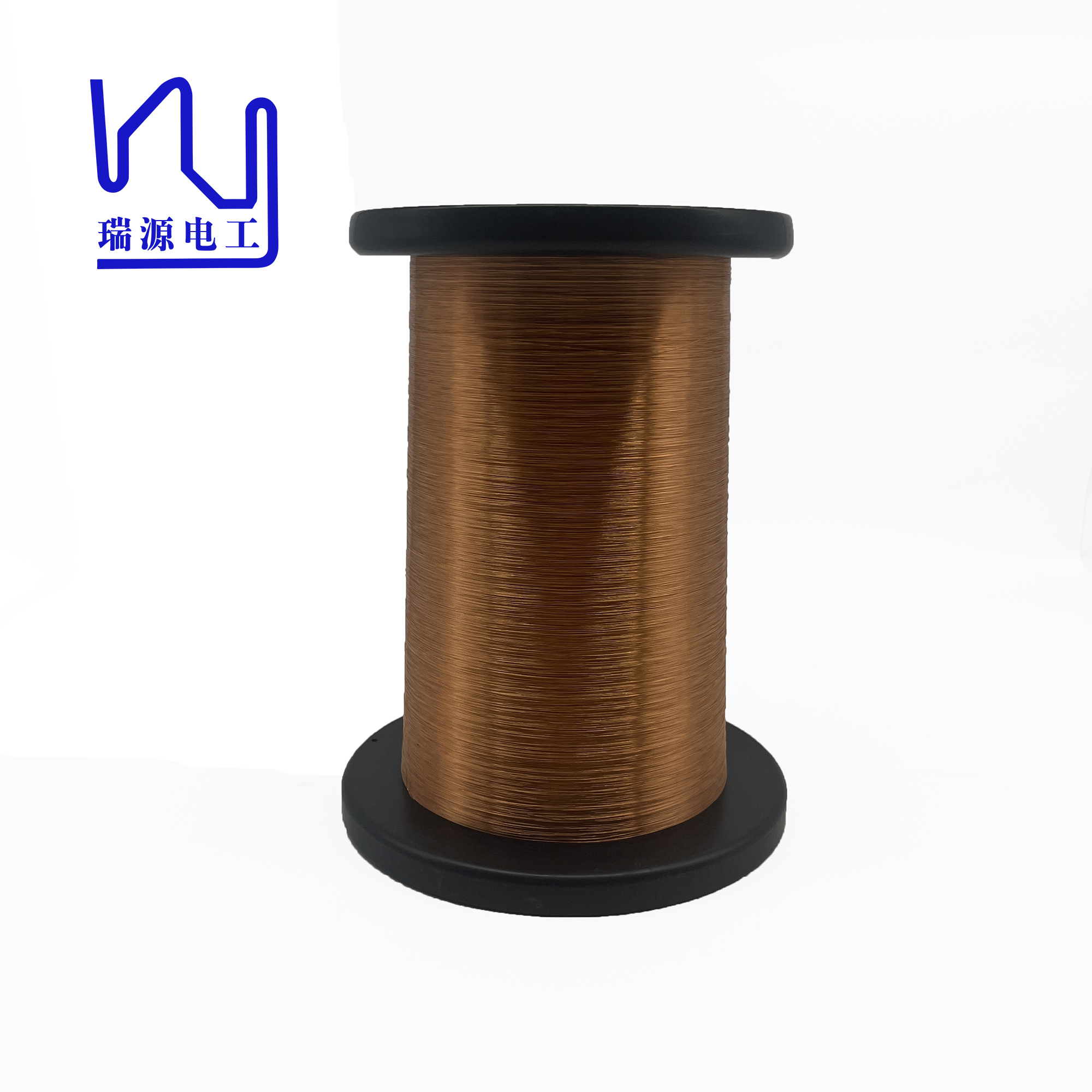

0.15mm Fully Insulated Zero-Defect (FIW) Polyurethane Copper Wire

View Details

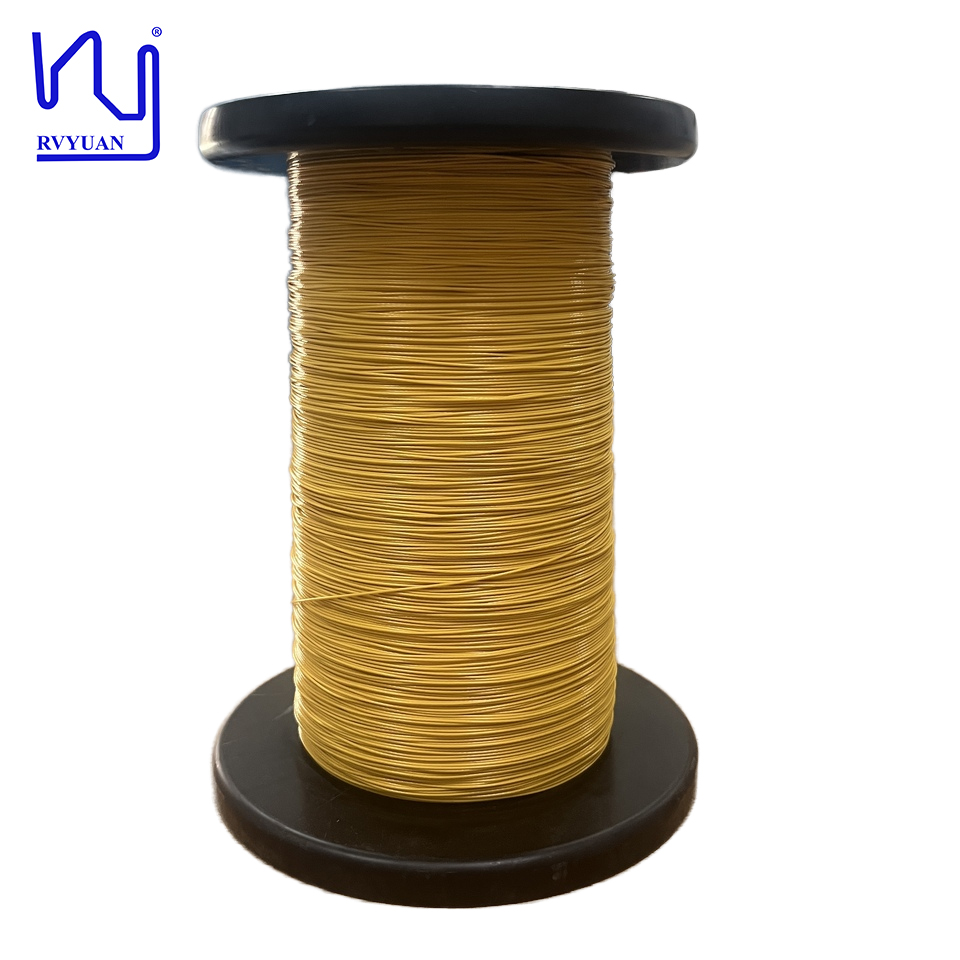

Extruded ETFE Polyurethane Insulation Litz Wire 0.21mmx7 Strands TIW

View Details

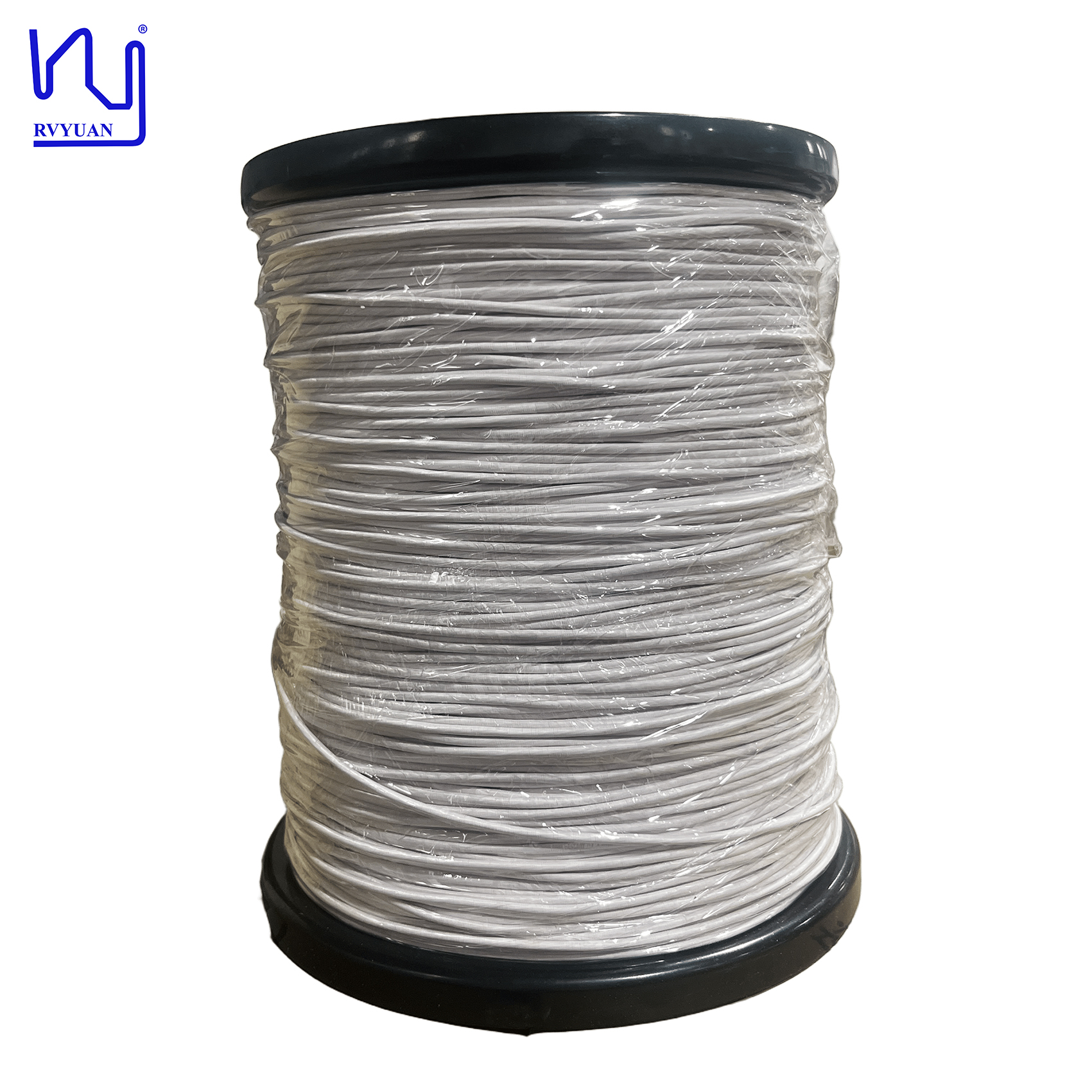

2USTC-F 0.06mmx600 Nylon Serving Polyurethane High-Power Litz Wire
