2USTC-F 0.071mmx840 Stranded Copper Wire Silk Covered Litz Wire

Short Description:

This is a custom-made silk covered litz wire, featuring a conductor diameter of 0.071mm made of pure copper with polyurethane enamel. This enameled copper wire is available in two temperature ratings: 155 degrees Celsius and 180 degrees Celsius. It is currently the most commonly used wire for making silk covered litz wire and can generally meet your product’s temperature requirements. This silk covered litz wire made of 840 strands twisted together, with an outer layer wrapped in nylon yarn, the overall dimension is ranges from 2.65mm to 2.85mm, and the maximum resistance is 0.00594Ω/m. If your product requirements fall within this range, then this wire is suitable for you.This silk covered litz wire is primarily used for winding transformers. We offer two jacket options: one is nylon yarn, and the other is polyester yarn. You can choose different jackets according to your design.

Send email to us

Product Detail

Product Tags

Introduction

Feature highlights:

1.This nylon served litz wire features copper stranded construction with polyurethane insulation, offering a breakdown voltage of 2600V and a temperature range of 155℃-180℃.

2.The product adheres to IEC, JIS and NEMA standards, ensuring global compliance. Certifications including UL, ROSH, Reach, highlighting regulatory advantages like safety compliance and enhancing market access for buyers.

Advantages

Tianjin Ruiyuan company mainly exports to Germany, Poland, and South Korea, offering full customization, design customization and sample customization service.

The delivery time for samples is one week. If your project is urgent, we can respond quickly.

Tianjin Ruiyuan have product certification and a high positive review rate of 99.8%, 100% delivery on time.

Specification

Outgoing test of silk covered litz wire	Spec: 0.071x840	Model: 2USTC-F
Item	Standard	Test result
Outer conductor diameter(mm)	0.071-0.084	0.079	0.080
Conductor diameter(mm)	0.071±0.003	0.068	0.070
Overall diameter (mm)	Max.3.20	2.65	2.85
Pitch(mm)	40±10	√	√
Max resistance (Ω/m at20℃)	Max. 0.005940	0.005394	0.005400
Breakdown voltage Mini (V)	950	2600	2700

Application

5G base station power supply

EV Charging Stations

Industrial Motor

Maglev Trains

Medical Electronics

Wind Turbines

Certificates

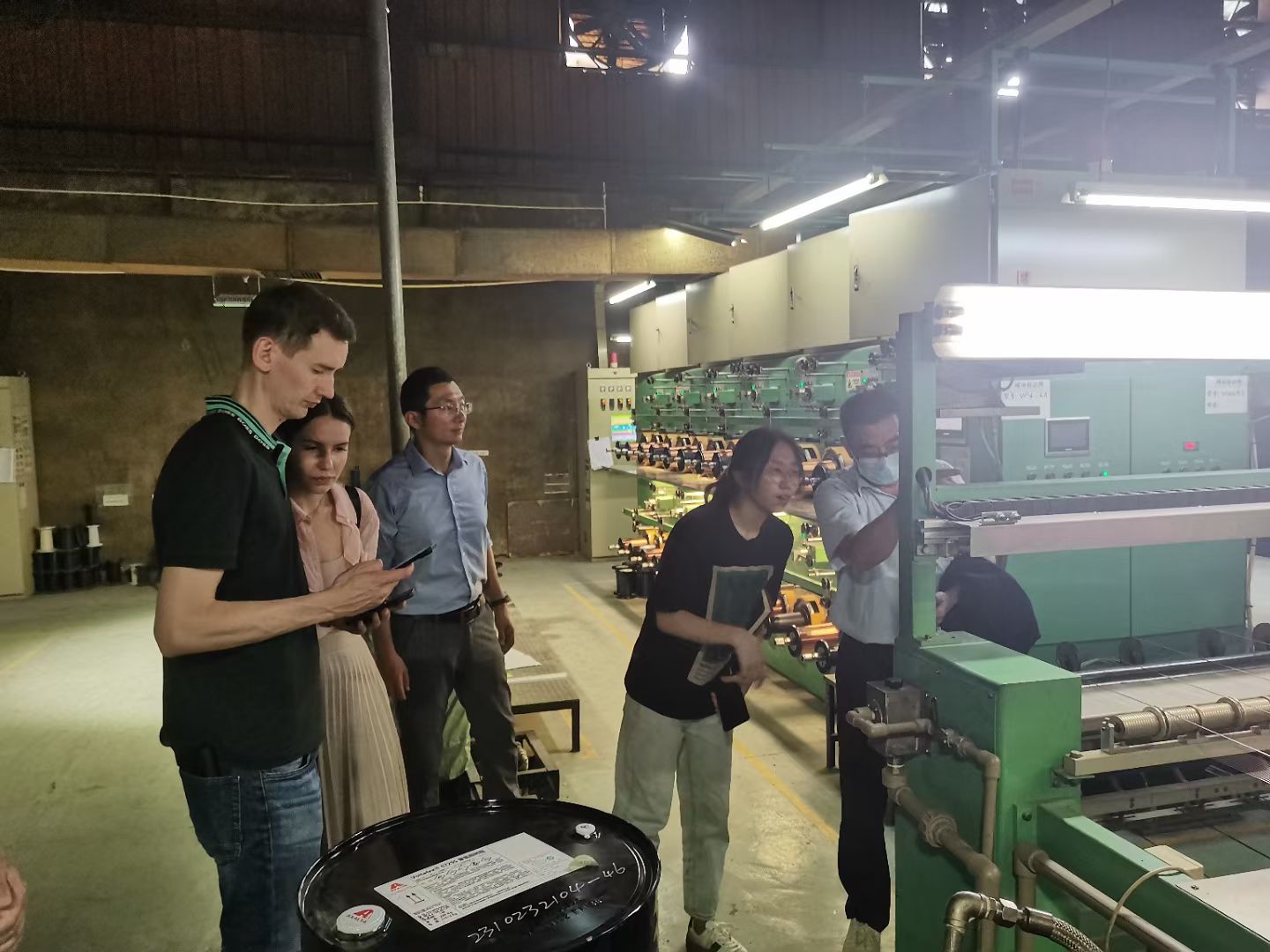

Customer photos

About us

Founded in 2002, Ruiyuan has been in the manufacture of enamelled copper wire for 20 years.We combine the best manufacturing techniques and enamel materials to create a high-quality, best-in-class enameled wire. The enameled copper wire lies at the heart of technology we use every day – appliances, generators, transformers, turbines, coils and much more. Nowadays, Ruiyuan has the global footprint to support our partners in marketplace.

Our Team
Ruiyuan attracts many outstanding technical and management talents, and our founders have built the best team in the industry with our long-term vision. We respects the values of each employee and provides them with a platform to make Ruiyuan a great place to grow a career.
