Ultra-Fine Electromagnetic Solutions

42 AWG Plain Enamel Wire For Precision Inductor Production

High-performance magnet wire engineering designed for next-generation micro-coils, RF inductors, SMD chip inductors, and specialized electrical applications.

Featured Precision Inductor Magnet Wires

Explore our fine enameled wire solutions engineered specifically for high-Q factor precision inductors, miniature transformers, and high-frequency power electronics.

2UEW155 40 AWG 0.08mm Brown Color Motor Winding Insulated Copper Wire Solid
2UEW155 40 AWG 0.08mm Brown Color Motor Winding Insulated Copper Wire Solid
View Details

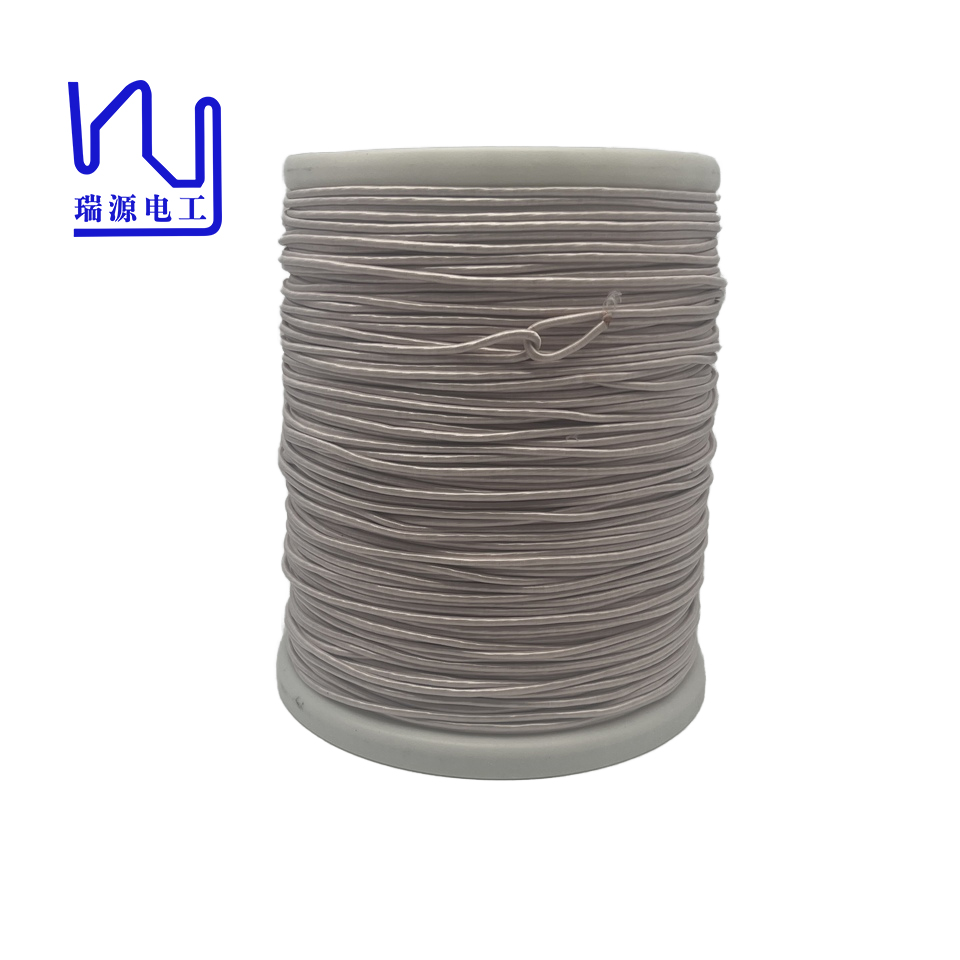

2USTC/UDTC-F 0.04mm x 2375 strands Silk Covered Litz Wire For Transformer
2USTC/UDTC-F 0.04mm x 2375 strands Silk Covered Litz Wire For Transformer
View Details

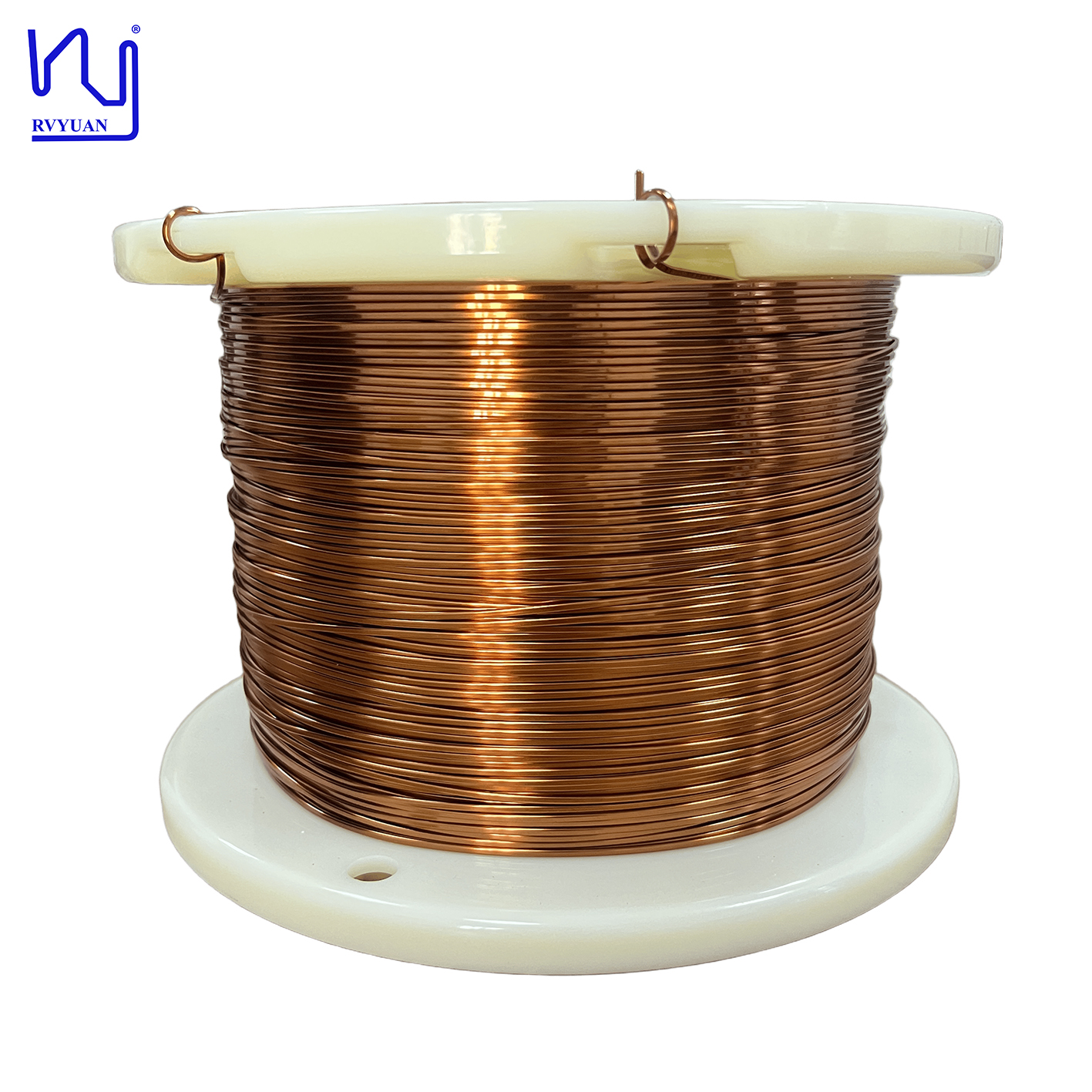

High-Performance Rectangular Enameled Copper Wire AIW Polyimide amide 1x1.6mm
High-Performance Rectangular Enameled Copper Wire AIW Polyimide amide 1x1.6mm
View Details
2USTC-F 0.071mmx1075 Silk Covered Litz Wire Stranded Copper Wire For Transformer/Wireless charger
2USTC-F 0.071mmx1075 Silk Covered Litz Wire Stranded Copper Wire For Precision Inductor
View Details

1. Comprehensive Technical Overview: 42 AWG Plain Enamel Wire in Modern Electronics

In the rapidly evolving landscape of high-frequency micro-electronics, 42 AWG plain enamel wire (nominal conductor diameter approximately 0.063mm or 0.0025 inches) stands as a foundational material for high-density, ultra-compact electromagnetic components. As circuit designs migrate toward higher clock frequencies, smaller physical footprints, and elevated thermal endurance thresholds, engineering precise inductive components requires an intimate understanding of fine magnet wire physical characteristics, dielectric coatings, and mechanical tolerances.
Plain Enamel wire insulation historically laid the groundwork for precision electrical components. Made primarily from classic oleoresinous resins, polyurethane (UEW), or modified polyester-imide chemistry formulations, plain enamel coatings deliver a remarkably thin, uniform dielectric film over high-purity oxygen-free copper (OFC) or Ohno Continuous Cast (OCC) copper substrates. This minimal insulation thickness—often designated as Single Build (1UEW) or Heavy Build (2UEW)—allows engineers to achieve maximized copper fill factors inside tight magnetic core geometries, directly improving energy storage capacity, inductance density, and quality factor (Q-factor) in precision inductors.
Ø
Ultra-Fine Gauge Precision
Nominal wire diameter of 0.063mm with microscopic dimensional consistency down to micro-inch tolerances, essential for uniform multi-layer coil winding.
Q
Maximized Quality Factor
Optimized dielectric film thickness reduces distributed inter-winding capacitance, yielding exceptionally high Q-factors across RF spectrums.
℃
Thermal Stability
Engineered thermal class ratings (155°C to 220°C) capable of enduring intense reflow soldering processes and high-stress operating environments.

2. Industrial Dynamics & Modern Precision Inductor Applications

The demand for ultra-fine magnet wire like 42 AWG plain enamel wire has surged dramatically across key high-tech industrial sectors. The convergence of 5G communications, miniature IoT sensors, electric vehicle (EV) control modules, implantable medical telemetry, and premium audiophile acoustic pickups has redefined the specifications required for precision inductors.

A. Radio Frequency (RF) Chip Inductors & Wireless Modules

In RF circuit design, parasitic capacitance and skin effect losses represent major engineering hurdles. Precision RF inductors wound with 42 AWG plain enamel wire benefit from the ultra-thin enamel coating, which places adjacent conductor turns extremely close together without risking dielectric breakdown. This results in tightly controlled self-resonant frequencies (SRF) and stable inductance values across gigahertz bandwidths.

B. High-Density Power Inductors & Miniature Transformers

Switched-mode power supplies (SMPS) operating in point-of-load (POL) converters for AI chips and mobile processors demand micro-inductors with high current-carrying capacity in extremely constrained spatial envelopes. Utilizing 42 AWG fine wire—or bundling multiple 42 AWG strands into custom Litz wire configurations—dramatically mitigates proximity effect losses at switching frequencies exceeding several megahertz.

C. Vintage & Precision Guitar Pickups (Audio Engineering)

In the musical instrument and high-end transducer industry, 42 AWG Plain Enamel wire holds legendary status. Famous vintage single-coil and humbucking pickups owe their distinct tonal warmth, harmonic richness, and mechanical resonance profile to the specific capacitive coupling characteristics of 42 AWG plain enamel wire. The subtle, controlled variations in film thickness provided by authentic plain enamel wire create a smooth treble response and balanced midrange response unattainable with standard modern polyurethane films.

D. Medical Micro-Sensors & Aerospace Actuators

Implantable medical devices such as pacemakers, hearing aids, and neurostimulators require micro-coils that demand absolute reliability under tiny form factors. 42 AWG plain enamel wire provides exceptional concentricity, pinhole-free insulation integrity, and high tensile strength essential for defect-free micro-winding operations on automated CNC winders.

3. Technical Parameters & Engineering Specifications Table

The following technical specification sheet outlines the standard physical, electrical, and thermal parameters of Tianjin Ruiyuan's 42 AWG Plain Enamel Wire engineered for precision inductor production:
Parameter Imperial Unit Specification Metric Unit Specification
Wire Gauge Standard 42 AWG 0.063 mm Nominal
Bare Conductor Diameter 0.0025 inches ± 0.00008 in 0.063 mm ± 0.002 mm
Overall Diameter (Single Build / 1UEW) 0.0028 - 0.0031 inches 0.071 - 0.079 mm
Overall Diameter (Heavy Build / 2UEW) 0.0030 - 0.0034 inches 0.076 - 0.086 mm
Electrical Resistance (@ 20°C) Approx. 1.65 - 1.80 Ω/ft Approx. 5.41 - 5.90 Ω/m
Thermal Class Options Class 130°C / Class 155°C / Class 180°C Class F (155°C) to Class H (180°C)
Insulation Coating Type Plain Enamel (Oleoresinous / Polyurethane) PE / UEW / Modified Polyimide
Elongation at Break > 15% > 15%
Dielectric Breakdown Voltage > 600 V (Single) / > 1200 V (Heavy) > 600 V (Single) / > 1200 V (Heavy)
Solderability Temperature 375°C - 390°C (Direct Solderable) 375°C - 390°C (Self-Stripping)

4. Winding Challenges & Precision Tension Management

Manufacturing precision inductors using ultra-fine 42 AWG magnet wire introduces critical mechanical challenges during the winding process. Due to the fine diameter of 0.063mm, the breaking strength of the copper conductor is low. Controlling dynamic wire tension is paramount to preventing copper stretching, which alters electrical resistance, decreases cross-sectional area, and damages the delicate enamel insulation film.
At Tianjin Ruiyuan Electric Material Co., Ltd., our 42 AWG plain enamel wire is produced with tight concentricity guarantees, uniform surface lubricity, and controlled spring-back elasticity. These physical attributes ensure:
  • Smooth Unspooling: Precision bobbin winding reduces snagging and tension spikes on high-speed automatic flyer winders.
  • Uniform Dielectric Thickness: Zero micro-pinholes along continuous coil lengths, verified by inline high-voltage spark testing.
  • Excellent Solderability: Formulated for clean, rapid thermal stripping during dip soldering, eliminating chemical stripping hazards.

About Tianjin Ruiyuan Electric Material Co., Ltd.

Established in 2002, Tianjin Ruiyuan has spent over 20 years dedicated to a single driving philosophy: "Customer Oriented, Innovation brings more Value."

We are not merely a standard magnet wire manufacturer—we are a technical solution provider. Our full product catalog encompasses ultra-fine enameled copper wire, high-frequency Litz wire, silk-covered wire (USTC), rectangular enameled copper wire, triple-insulated wire (TIW), and guitar pickup wire, offering over 6 main categories and 20 distinct wire variations.

7-10 Days
Average Global Delivery Lead Time
90%
Clients in Europe & North America
95%
Customer Repurchase Rate
99.3%
Customer Satisfaction (Class A Verified)

Engineering Case Study: Automotive Wireless Charger Solution

A prominent European automotive component manufacturer required a specialized high-frequency Litz wire for automotive EV wireless charging modules. The application demanded exceptional chemical solvent resistance alongside strict UL94-V0 flame retardancy. Existing insulation options failed performance tests or proved economically prohibitive.

Ruiyuan's specialized R&D engineering team developed an innovative custom insulation architecture: extruding ETFE outer insulation directly over high-density fine-stranded Litz wire. After a rigorous one-year validation process, all thermal, mechanical, and safety requirements were satisfied. The project was successfully brought into full mass production, significantly lowering component costs for the client while elevating thermal robustness.

State-Of-The-Art Manufacturing & Testing Facility

Our Tianjin production plant is equipped with optical laser diameter gauges, automatic high-voltage spark detectors, elongation testers, and precision resistance meters to guarantee zero-defect quality control.

Ruiyuan Factory Facility 1
Ruiyuan Factory Facility 2
Ruiyuan Factory Facility 3
Ruiyuan Factory Facility 4
Ruiyuan Factory Facility 5
Ruiyuan Factory Facility 6
Ruiyuan Factory Facility 7
Ruiyuan Factory Facility 8
  • promote01

  • One-Stop Solution

    100% Open and Delivering On-Time.
    As a leading supplier of enamel copper wire, we have earned a reputation for providing a superior customer experience and first-class quality and cooperation.

    View more
  • promote02

Exquisite, Quality, All For The Customer!

Ruiyuan attracts many outstanding technical and management talents, and our founders have built the best team in the industry with our long-term vision, this is our guarantee to provide quality products and services to all our customers.

Frequently Asked Questions (FAQ)

Find detailed answers to common inquiries regarding sample ordering, product customization, technical parameters, lead times, and global shipping policies.

Can I get samples for testing before placing a batch order?
Yes. Samples are either free or charged depending on exact specs, but the shipping cost is borne by the customer.
What is your delivery lead time?
Sample orders: 3–5 working days; bulk orders: completed within 15 working days after formal order confirmation.
What is your warranty policy?
Within 2 years, any quality-related issues will be covered by a one-time full replacement of defective products.
What is the procurement process?
Submit inquiry with requirements → Sample making → Sample approval → Quotation → Proforma Invoice (PI) → PI confirmation → Payment arrangement → Production → Shipment.
What are your trade terms?
EXW, CPT, FOB, CIF, DDU, and DDP are all acceptable trade terms for international orders.
Can I customize products with my own logo, size, and shape?
Yes, custom dimensioning, packaging, and branding are supported; MOQ (Minimum Order Quantity) is subject to technical negotiation.
What are your payment methods?
We accept T/T (Telegraphic Transfer), D/P, L/C at sight, and PayPal.
Which courier services do you use?
FedEx, DHL, TNT, and UPS, with official volume discounts up to 80% passed on to clients.
How are your products different from competitors'? What are your advantages?
We offer a full range of high-frequency magnet wire products (Litz wire, rectangular, round, TIW, OCC wire) with low MOQs, rapid custom R&D prototyping, and short lead times.
Do you charge a mold fee? How much? Is it refundable?
A mold fee applies for special non-standard customized shapes/sizes. The mold fee is fully refundable after reaching a specified target order volume.
Do you have a Minimum Order Quantity (MOQ)?
Yes, MOQ is determined based on the wire specification, spool size, and insulation alloy type.
What testing equipment do you have?
Laser diameter gauge, high-voltage spark tester, elongation tester, spring-back tester, withstand voltage tester, solderability tester, and Resistance Tester.
What are your specific product categories?
Litz wire, rectangular enameled copper wire, magnet wire, self-bonding wire, TIW (triple-insulated wire), OCC wire, silver wire, and silver-plated wire.
Which customers or markets are your products suitable for?
Power electronics, EV on-board chargers, wireless charging systems, green energy inverters, telecommunications, medical equipment, industrial robotics, servo motors, and audio transducers.
Which countries or regions have you exported to?
Major export markets include Western Europe, North America, Japan, South Korea, India, and Southeast Asia.
Are your products cost-effective? In what ways?
Yes, through comprehensive one-stop procurement, strict raw material yields, short production cycles, and reduced total ownership costs for our clients.
How do you keep customer information confidential?
We routinely execute legally binding Non-Disclosure Agreements (NDAs) prior to engineering evaluations and strictly safeguard all proprietary client design data.

Complete Precision Wire Product Catalog

Explore our broader magnet wire solutions, including OCC ultra-pure copper, silk-covered Litz wires, rectangular enameled flat wire, and specialized audio pickup wires.

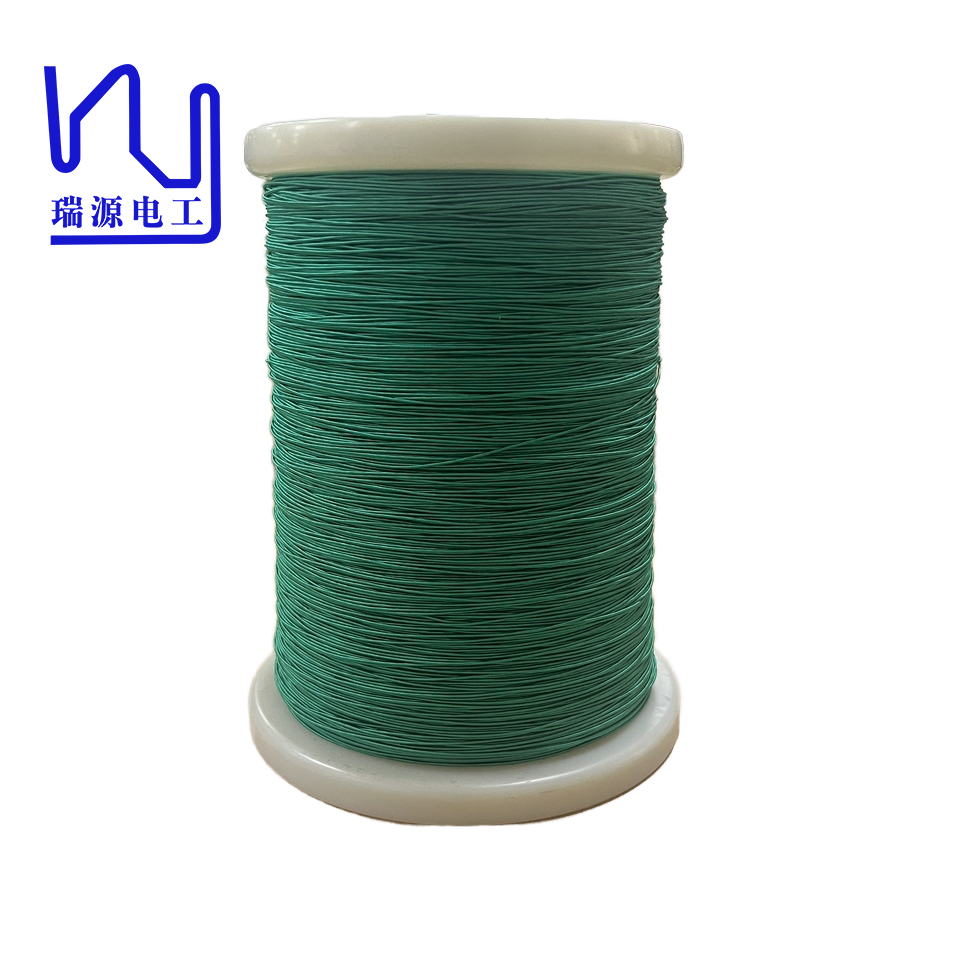

USTC-F 0.1mmx 50 Green Natural silk covered litz wire for high-end audio equipment
