Featured Precision Magnet Wires
Engineered for High-Frequency Inductors, Micro-Coils, and Electromagnetic Applications
Technical Foundations of Alcohol-Bondable Wires
Optimizing Precision Inductor Production through Chemical Activation and Zero-Bobbin Winding
Solvent-Activated Bonding
Alcohol-bondable magnet wire features an outer thermoplastic self-bonding layer (such as Polyvinyl Butyral or customized polyamide resins) that softens rapidly when exposed to industrial alcohols like Ethanol or Isopropyl Alcohol (IPA). This process forms solid, void-free coil matrices without requiring thermal ovens.
Bobbinless Coil Geometry
By eliminating physical bobbins, alcohol-bondable wires allow manufacturers to maximize copper fill factors, streamline form factors, and enhance magnetic coupling in ultra-compact surface-mount device (SMD) inductors, high-Q RF chokes, and specialized transducers.
High-Precision Dimensional Stability
Precision inductors demand exact inductance values and tight physical tolerances. Liquid solvent bonding fixes turn-to-turn positions instantly during high-speed automated winding, minimizing microphonic effects and reducing inter-winding capacitance variance.
The Evolution of Precision Inductor Production with Self-Bonding Magnet Wire
In modern electronic systems—spanning 5G telecommunication hardware, electric vehicle (EV) power electronics, wearable medical sensors, and high-frequency DC-DC converters—the demand for component miniaturization and efficiency has reached an unprecedented scale. At the core of these electromagnetic components is the precision inductor, an element whose performance relies on precise coil geometry, exceptional Q-factors, and thermal resistance.
Traditional inductor manufacturing relied heavily on plastic bobbins or ceramic carriers to hold copper windings in position, followed by labor-intensive dipping and baking varnish processes. Today, the industry has shifted toward alcohol-bondable magnet wire (self-bonding wire). By incorporating an engineered secondary adhesive coating over the primary electrical insulation (such as polyurethane, polyester, or polyesterimide), alcohol-bondable wires enable seamless, solvent-assisted self-adhesion directly during the winding process.
Chemical Mechanism & Process Efficiency of Alcohol Bonding
Alcohol bonding operates on a liquid-activation principle. As the wire passes through a regulated alcohol dispenser or bath (typically containing ethanol or isopropyl alcohol) immediately prior to being guided onto the winding mandrel, the solvent briefly dissolves and tackifies the outer thermoplastic layer.
- Rapid Flash Tackifying: The quick evaporation rate of alcohol allows the adhesive layer to bond instantly with neighboring wires under mechanical winding tension, hardening within seconds of contact.
- Zero Thermal Stress: Unlike heat-bonding magnet wire—which requires high-temperature baking ovens or electrical resistance heating—alcohol bonding preserves the structural integrity of ultra-fine copper conductors (down to 41 AWG / 0.071mm and finer) without running the risk of thermal shock or copper elongation.
- Enhanced Fill Factor: Eliminating core bobbins allows inductors to pack significantly more copper into the same volumetric footprint, reducing direct-current resistance (DCR) and boosting overall current-handling capability.
Market Drivers & Deep Application Analysis
The strategic deployment of alcohol-bondable wires stretches across several rapid-growth industrial sectors:
1. Automotive Electronics & EV Infrastructure: Modern vehicles incorporate dozens of micro-inductors, wireless charging coils, and noise-suppression chokes within Battery Management Systems (BMS) and Advanced Driver Assistance Systems (ADAS). High precision and resistance to continuous vibration are paramount.
2. Telecommunications & High-Frequency Power Supplies: As switching frequencies push into the MHz domain, maintaining low parasitic capacitance and tight inductance tolerances is non-negotiable. Self-bonding Litz wires and self-bonding single-end magnet wires ensure that precise coil spacing is locked in permanently.
3. Medical Implants & Miniature Transducers: In hearing aids, capsule endoscopes, and wearable health monitors, spatial limitations are measured in fractions of a millimeter. Alcohol-bonded air-core coils provide structural rigidity without adding non-functional mass.
Technical Specifications Comparison
When selecting an alcohol-bondable wire for precision inductors, engineers must balance thermal class, insulation base, and bonding characteristics. Below is a overview of standard parameters offered by industry-leading material suppliers like Tianjin Ruiyuan Electric Material Co., Ltd.:
- Thermal Rating: Class 130 (B), Class 155 (F), Class 180 (H)

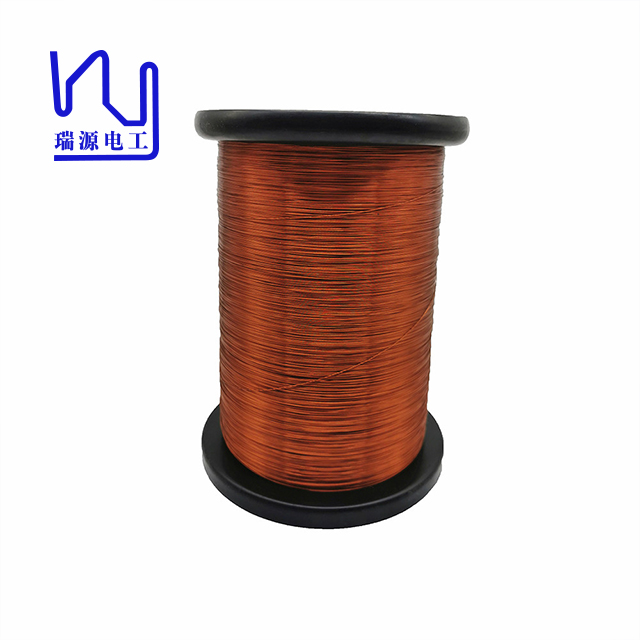

- Base Coatings: Polyurethane (UEW), Polyesterimide (EIW)
- Bonding Layer: Polyvinyl Butyral (PVB), Polyamide (PA)
- Diameter Range: Ultra-fine 0.020mm (52 AWG) up to 0.500mm (24 AWG)
- Solvent Compatibility: Ethanol, Methanol, Isopropyl Alcohol (IPA)
About Tianjin Ruiyuan Electric Material Co., Ltd.
Two Decades of Innovation, Customer-Centric Engineering, and Magnet Wire Mastery
Tianjin Ruiyuan Electric Material Co., Ltd. (Ruiyuan) was established in 2002. Over the past 20 years, we have been guided by one central question: "How do we fully satisfy our customers?" This core drive has led us to expand our product lines from fine enameled copper wire to high-frequency Litz wire, USTC silk-covered wire, rectangular enameled copper wire, triple-insulated wire (TIW), self-bonding wire, and custom pickup magnet wire—comprising 6 main types with over 20 distinct categories of magnet wire.
At Ruiyuan, customers enjoy a true One-Stop Purchase Service with cost-effective pricing, backed by uncompromising quality assurance. Our overarching mission is to help our global partners reduce total material costs, save development time, and establish long-term win-win cooperation.
For two decades, our guiding operation philosophy has been: "Customer Oriented, Innovation Brings More Value." This is not just a slogan—it is part of our operational DNA. Unlike standard magnet wire vendors who limit clients to stock dimensions, Ruiyuan acts as a comprehensive solution provider, leveraging deep expertise across conductors, thermal insulation materials, and specialized winding applications.
Engineering Innovation Story: High-Frequency Automotive Solution
A European customer required a high-frequency Litz wire for automotive wireless charging systems requiring superior solvent resistance and a UL94-V0 flame rate rating. Existing insulation materials failed to meet these strict specifications, and alternative solutions were prohibitively expensive. After extensive technical evaluation, Ruiyuan's R&D team proposed an innovative solution: extruding ETFE insulation directly over the surface of the Litz wire. Following a rigorous one-year validation process, all technical roadblocks were resolved. The project moved successfully into full-scale mass production, demonstrating our advanced engineering capability.
State-of-the-Art Production & Quality Control Facilities
Frequently Asked Questions (FAQ)
Everything You Need to Know About Procurement, Customization, and Magnet Wire Specifications
Can I get samples for testing before placing a batch order?
Yes. Samples are either free or charged based on specifications, with shipping costs covered by the customer.
What is your delivery lead time?
Sample orders: 3–5 working days; Bulk orders: Completed within 15 working days following order confirmation.
What is your warranty policy?
Within 2 years, any quality-related issues will be covered by a one-time full replacement of defective products.
What is the procurement process?
Submit inquiry → Sample production → Sample approval → Quotation → Proforma Invoice (PI) → Payment → Production → Shipment.
What are your trade terms?
EXW, CPT, FOB, CIF, DDU, and DDP are all fully supported.
Can I customize products with my own logo, size, and shape?
Yes, customized sizes, packaging, and wire profiles are available; MOQ is subject to negotiation.
What are your payment methods?
We accept T/T, D/P, L/C, and PayPal.
Which courier services do you use?
FedEx, DHL, TNT, and UPS, featuring negotiated tier-1 discounts up to 80%.
How do your products differ from competitors? What are your advantages?
We offer a complete range of high-frequency magnet wire products (Litz, rectangular wire, self-bonding, TIW) with short lead times and small-batch customization for R&D phases.
Do you charge a mold fee? How much? Is it refundable?
Mold fees apply only to specialized custom geometries. The fee is fully refundable once order volume reaches agreed thresholds.
Do you have a Minimum Order Quantity (MOQ)?
Yes, the MOQ is determined based on wire diameter, insulation type, and technical specifications.
What testing equipment do you use?
Laser diameter gauges, high-voltage spark testers, elongation testers, spring-back testers, withstand voltage testers, solderability testers, and precision resistance meters.
What are your specific product categories?
Litz wire, rectangular enameled copper wire, magnet wire, self-bonding wire, TIW (triple-insulated wire), OCC wire, silver wire, and silver-plated wire.
Which markets are your products suitable for?
Applications requiring high efficiency in high-frequency AC environments, including EV chargers, wireless power transfer, telecom, green energy, medical electronics, and servo motors.
Which countries or regions do you export to?
Our major markets include Europe, North America, South Korea, Japan, India, and Southeast Asia.
Are your products cost-effective? In what ways?
We offer full-range single-source procurement, custom small-batch support, short lead times, and reduced engineering overhead.
How do you keep customer information confidential?
We sign legally binding Non-Disclosure Agreements (NDAs) and strictly protect proprietary customer designs and IP.
