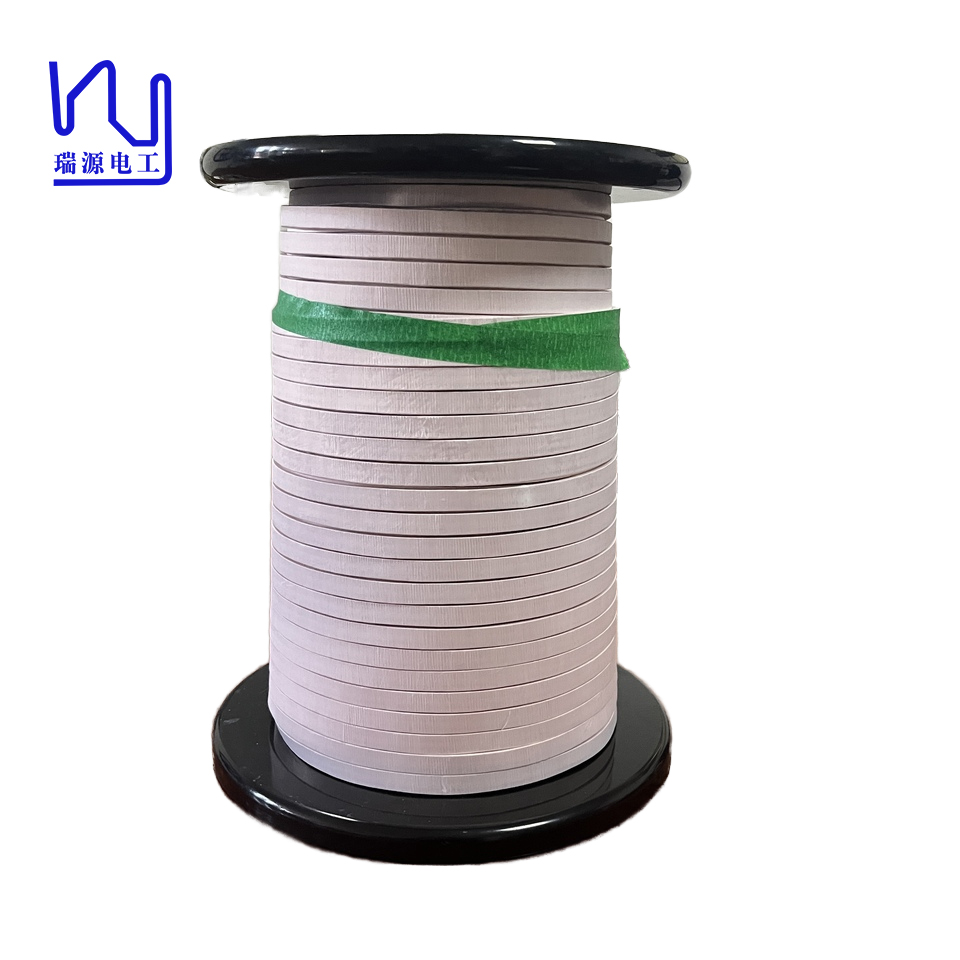

2USTC-F 0.08mmx3000 insulated copper wire 9.4mmx3.4mm nylon served litz wire

2USTC-F 0.1mmx300 Nylon Serving Litz Wire for Transformer Copper Litz Wire

0.05mm Enameled Copper Wire for Ignition Coil

US Enameled Rectangular Copper Wire Market Landscape

Accelerating electrification, high-power density requirements, and low-latency prototyping across North America.

The Shift Toward Rectangular Profile Magnet Wire

Across the United States, electrical engineering sectors are undergoing a massive transition from traditional round copper wire to highly efficient enameled rectangular copper wire (flat magnet wire). Driven by the aggressive growth of Electric Vehicle (EV) manufacturing in Michigan, Texas, California, and the Southeast, coil designers are demanding magnet wire profiles that minimize air gaps, enhance slot fill factors, and optimize thermal management.

Unlike standard round magnet wires that leave up to 30-40% empty space inside stator slots, precision rectangular wire maximizes copper density, offering slot space fill factors exceeding 78%. This dramatic increase in cross-sectional copper enables US manufacturers of EV traction motors, high-frequency industrial transformers, and medical equipment to construct smaller, lighter, and cooler-running equipment.

Key Advantages for US OEMs

Superior Slot Fill Factor: Up to 78%+ fill factor compared to 45-50% for round wires.
Enhanced Thermal Dissipation: Flat surfaces allow direct thermal transfer and better cooling paths.
High Voltage Insulation Integrity: Uniform enamel coating (PI, AIW, PAI, PEI) prevents turn-to-turn insulation breakdown.
Low MOQ Flexibility: Prototype-friendly volumes for engineering R&D labs and mid-scale production lines.

Technical Specifications & Custom Manufacturing Capabilities

Tailored wire dimensions, high-temperature enamels, and specialized insulation layers.

Wire Type Parameter	Rectangular Flat Wire Specifications	High-Frequency Litz Wire Specifications
Conductor Size Range	Width: 1.0mm – 12.0mm \| Thickness: 0.4mm – 4.0mm	Single Strand: 0.03mm – 0.50mm \| Total Strands: 2 to 6000+
Thermal Class Ratings	Class 155°C (F), 180°C (H), 200°C (C), 220°C (AIW / PAI), 240°C (PI)	Class 130°C, 155°C, 180°C, 220°C
Insulation Materials	Polyurethane (UEW), Polyesterimide (EIW), Polyamide-imide (AIW), PI Tape, PTFE	Silk Covered (USTC), Nylon Served, Kapton/PI Taped, Mylar/PET Taped, ETFE Extruded
Dielectric Breakdown Voltage	Up to 15,000V depending on enamel thickness (Grade 1, 2, 3)	3,500V to 10,000V (High dielectric taped structures available)
US Compliance Standards	NEMA MW 1000-C (MW 35-C, MW 36-C, MW 73-C), UL Approved E-files, RoHS, REACH	NEMA MW 79-C, MW 80-C, UL94-V0 flame retardant options

Specialized Magnet Wire Solutions in Portfolio

0.05mm 2UEW/3UEW155/180 Enameled Copper Wire for Ignition Coil

0.1mm*600 PI Insulation Copper Enameled Wire Profiled Litz Wire

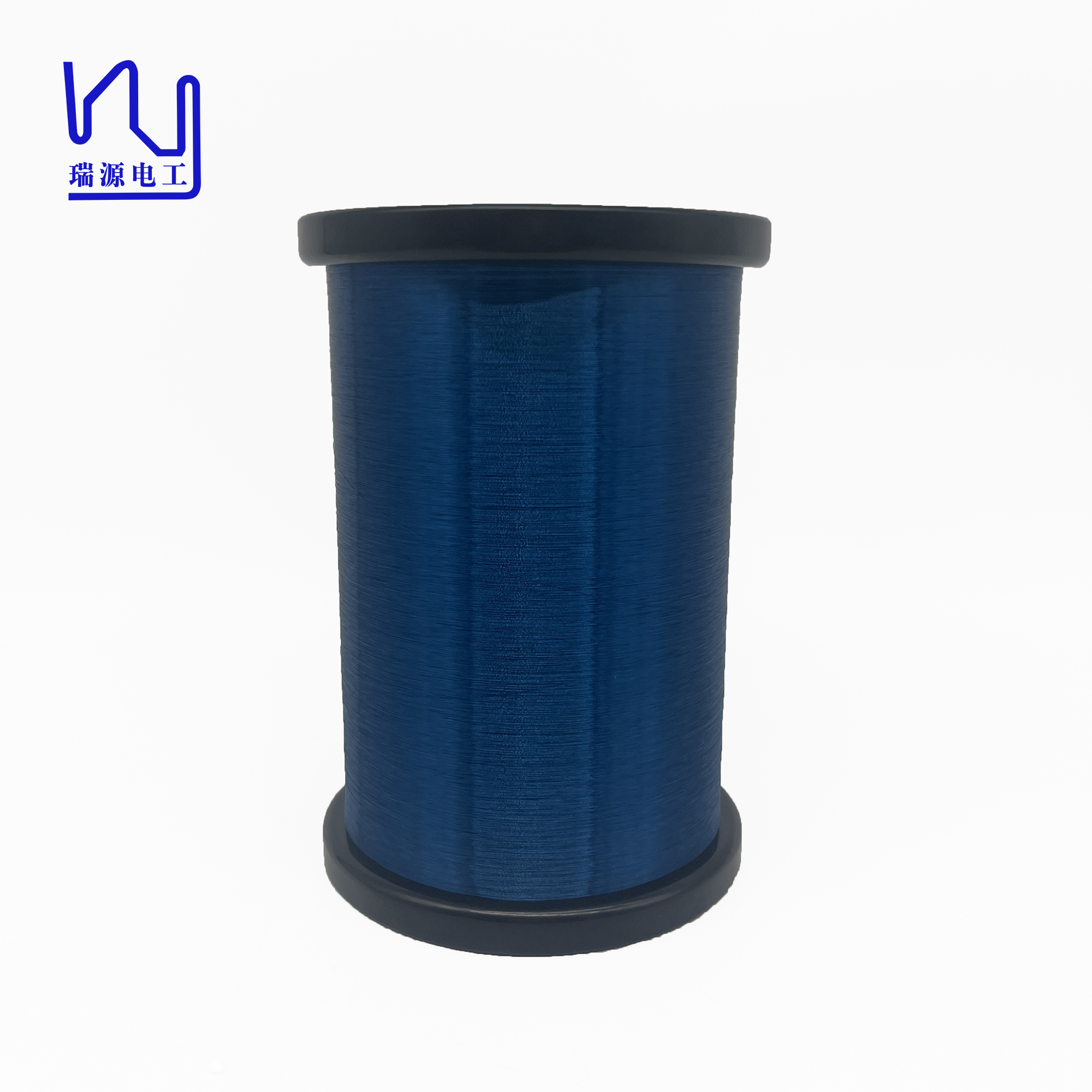

Blue Color 42 AWG Poly Enameled Copper Wire For Guitar Pickup Winding

2USTC-H 19 Strands/42AWG Natural Silk Covered Copper Litz Wire For Audio Cable

Why US Engineers Choose Our Low MOQ Magnet Wire Supply

Eliminating high minimum volume barriers for small-batch prototyping, university R&D, and boutique manufacturing.

Low Minimum Order Quantity (MOQ)

Traditional North American wire mills often impose prohibitively large order minimums (500 kg to 2 metric tons), creating severe bottlenecks for R&D projects. We offer flexible, low MOQ procurement starting from small spools, giving US engineers fast access to custom flat and litz wires without tying up capital.

Rapid 7–10 Day Delivery

Time-to-market is critical in US tech hubs. With optimized production lines and logistics partnerships with global couriers (FedEx, DHL, UPS with up to 80% corporate freight discounts), standard sample orders ship within 3–5 working days and bulk production completes within 15 working days.

Custom Dimensions & Insulations

From ultra-thin flat wires (e.g., 0.2mm x 5.0mm) to high-voltage taped profiled litz wire, our R&D team provides tailor-made aspect ratios, specialized self-bonding coatings, and extreme thermal class films (AIW 220°C / PI 240°C).

Localized US Application Scenarios

Empowering next-generation power electronics across automotive, renewable grid, and aerospace industries.

1. Electric Vehicle (EV) Hairpin Motors & On-Board Chargers (OBC)

The US automotive shift toward 800V EV powertrains requires rectangular wires (such as 5mm x 0.7mm AIW 220) for hairpin winding technology. Hairpin stators drastically improve torque density and slot fill. Additionally, our ETFE/PI-insulated Litz wires excel in wireless charging pads and high-frequency DC-DC converters.

2. Solar Inverters, Wind Energy & Smart Power Grids

High-efficiency grid-tied inverters built in Texas, Arizona, and Oregon rely on customized rectangular magnet wire and high-frequency Litz wire to minimize skin-effect losses and withstand continuous thermal cycling up to Class 220°C.

3. High-Frequency Medical Devices & MRI Equipment

High-precision medical imaging equipment, surgical power generators, and high-frequency transformers demand reliable dielectric insulation and ultra-pure copper conductors (including 6N OCC 99.9999% high purity copper) for low loss signals.

4. Aerospace, Defense & Industrial Robotics

Compact servo motors, actuators, and airborne radar power supplies depend on lightweight flat copper magnet wire to maximize magnetic force within constrained aerospace envelope spaces.

About Tianjin Ruiyuan Electric Material Co., Ltd.

Two decades of innovation in magnet wire technology, customer-centric engineering, and global export excellence.

Company Profile

Tianjin Ruiyuan Electric Material Co,. Ltd. (Ruiyuan) was established in 2002. In the past 20 years, we have been thinking one question: ’How to Satisfy Customer’. That drive leads us to expand our product lines from fine enameled copper wire to litz wire, USTC, rectangular enameled copper wire, triple insulated wire, and also guitar pickup wire—spanning 6 main types with over 20 kinds of magnet wire. Here you will enjoy One-Stop Purchase Service with cost-effective prices, and quality is the last thing you need to concern. We wish to help you reduce your costs, save your time, and establish long-term Win-Win cooperation.

What we have been doing for 20 years is pursuing our operation philosophy ‘Customer Oriented, Innovation brings more Value’. That is not just a slogan, but a part of our DNA. Unlike ordinary magnet wire providers that only offer standard size ranges, we are a solution provider that is deeply professional in wires, insulation materials, and your custom applications.

European Automotive Success Story

One of our European automotive customers needed a high-frequency litz wire for an automotive wireless charging system. The project demanded exceptional solvent resistance and a flame-retardant rating compliant with UL94-V0. Standard insulation could not meet the criteria, and alternative market solutions carried exorbitant prices.

Our R&D team proposed an innovative solution: extruding an ETFE insulation jacket directly onto the surface of the customized Litz wire. After one year of rigorous testing and two years of project verification, all technical hurdles were solved perfectly. The customized wire has been in mass production since this year.

View More Products

State-of-the-Art Production & Quality Control Facilities

SUCH CASE IS PREVALENT IN OUR COMPANY, THAT FULLY DEMONSTRATE OUR ADVANTAGES ON TECHNOLOGY AND SERVICE BESIDES THIS, THESE NUMBERS TELL MORE ABOUT US

7-10 Days

Average Delivery Time

90%

European & North American Customers (PTR, ELSIT, STS, etc.)

95%

Client Repurchase Rate

99.3%

Satisfaction Rate (Class A Supplier Verified by German Clients)

One-Stop Solution

100% Open and Delivering On-Time

As a leading supplier of enamel copper wire, we have earned a reputation for providing a superior customer experience, first-class quality, and seamless international cooperation. We really hope to know you, bringing you more value with our better products and dedicated service.

View More Wire Solutions

Exquisite, Quality, All For The Customer!

Ruiyuan attracts many outstanding technical and management talents. Our founders have built the best team in the industry with a long-term vision—this is our guarantee to provide quality products and services to all our customers worldwide.

Explore Features

Frequently Asked Questions (FAQ)

Clear answers regarding samples, delivery times, technical testing, low MOQs, and custom procurement.

Q1 Can I get samples for testing before placing a batch order?

Yes. Samples are either free or charged, but the shipping cost is borne by the customer.

Q2 What is your delivery lead time?

Sample orders: 3–5 working days; bulk orders: completed within 15 working days after order confirmation.

Q3 What is your warranty policy?

Within 2 years, any quality-related issues will be covered by a one-time full replacement of defective products.

Q4 What is the procurement process?

Submit inquiry with requirements → Sample making → Sample approval → Quotation → Proforma Invoice (PI) → PI confirmation → Payment arrangement → Production → Shipment.

Q5 What are your trade terms?

EXW, CPT, FOB, CIF, DDU, DDP are all acceptable.

Q6 Can I customize products with my own logo, size, and shape?

Yes, but the MOQ (Minimum Order Quantity) is subject to negotiation.

Q7 What are your payment methods?

T/T, D/P, L/C, PayPal.

Q8 Which courier services do you use?

FedEx, DHL, TNT, UPS, with discounts up to 80%.

Q9 How are your products different from competitors'? What are your advantages?

We offer a full range of high-frequency magnet wire products, including litz wire, rectangular enameled copper wire, round enameled copper wire, triple-insulated wire, etc., to meet various requirements. We support small-batch customization, ensuring quality and delivery even during your R&D or startup phase.

Q10 Do you charge a mold fee? How much? Is it refundable? How?

A mold fee applies for special customized products, and the amount depends on the specific specifications. The mold fee is refundable after a certain order quantity is reached.

Q11 Do you have a Minimum Order Quantity (MOQ)?

Yes, the MOQ is determined based on the wire specification and type. However, we keep MOQs low to support fast prototyping.

Q12 What testing equipment do you have?

Laser diameter gauge, high-voltage spark tester, elongation tester, spring-back tester, withstand voltage tester, solderability tester, Resistance Tester, etc.

Q13 What are your specific product categories?

Litz wire, rectangular enameled copper wire, magnet wire, self-bonding wire, TIW (triple-insulated wire), OCC wire, silver wire, silver-plated wire.

Q14 Which customers or markets are your products suitable for?

Our products are ideal for applications requiring high efficiency and space-saving solutions in high-frequency AC environments, including power electronics & power supplies, EV on-board chargers, wireless charging systems, green energy, communications & IT, medical equipment, industrial robots, servo motors, etc.

Q15 Which countries or regions have you exported to?

Major markets include Europe and the US, as well as South Korea, Japan, India, and Southeast Asia.

Q16 Are your products cost-effective? In what ways?

We offer a full range of products with high quality, short lead times, and support for customization and mixed batches, meeting your one-stop purchasing needs.

Q17 How do you keep customer information confidential?

We can sign a non-disclosure agreement (NDA) upon request and commit to strictly abiding by its terms throughout the entire cooperation process.
