Featured Precision Magnet Wires for Pickup Coils
Explore our high-performance magnet wires engineered for extreme space factor efficiency, crystal-clear tonal articulation, and high-frequency stability.
The Acoustic Revolution: Rectangular Magnet Wire in Modern Guitar Pickup Manufacturing
Electric guitar pickups are the foundational bridge converting mechanical string vibrations into complex electrical signals. For decades, conventional pickup manufacturing has relied heavily on standard round enamelled copper wire—most notably fine gauges such as 42 AWG, 43 AWG, and 44 AWG featuring Plain Enamel, Heavy Formvar, or Polyurethane coatings. However, as modern music production demands higher output density, lower background noise floor, precise EQ shaping, and compact bobbin profiles, the physical limits of round magnet wire have become apparent.
The introduction of rectangular magnet wire (flat copper wire) for guitar pickup coil manufacturing represents a massive structural evolution in electro-acoustic engineering. By transitioning from round conductors to precision-milled rectangular cross-sections, pickup winding engineers eliminate the inherent interstitial voids (air gaps) associated with round wire stacking. This yields an unprecedented copper slot fill factor exceeding 85% to 90%, enabling pickup builders to pack significantly more conductive cross-sectional mass into tight bobbin parameters without expanding external dimensions.
Why Rectangular Geometry Matters for Guitar Pickups
Unlike round wire, which creates up to 25-30% vacant air space inside a bobbin, flat rectangular wire stacks seamlessly like building bricks. This structural density maximizes magnetic flux linkage, lowers DC resistance relative to output level, reduces microphonic squeal, and delivers exceptional signal-to-noise ratios—ideal for boutique single-coils, ultra-high output humbuckers, multi-string extended range pickups, and noiseless stacked coil designs.
Key Electro-Acoustic Advantages of Rectangular Magnet Wire
Maximum Fill Factor
Eliminates unused inter-strand space, allowing up to 30% more copper turn density per square millimeter of bobbin winding area.
Harmonic Articulation
Uniform turn placement reduces uncontrolled inter-turn capacitance spikes, preserving high-end chime and overtone clarity.
Superior Heat & Vibration Stability
Self-bonding enamel layers fuse the flat sides tightly together, suppressing microphonic feedback without heavy wax potting.
Furthermore, rectangular magnet wire optimizes the Skin Effect and Proximity Effect across the audible frequency spectrum. When audio signals pass through a round conductor, eddy currents force high-frequency components toward the outer perimeter, altering impedance dynamically. Rectangular magnet wires maintain a uniform surface area-to-cross-section ratio, stabilizing AC resistance and rendering guitar tones with remarkable clarity, punchy low-end tightness, and transparent transient response.
Industrial Trends & Custom Boutique Pickup Market Dynamics
The global guitar pickup manufacturing sector is experiencing a profound paradigm shift driven by two growing market segments: high-volume automated OEM production and high-end boutique custom shops. Both sectors demand strict dimensional tolerances, reliable insulation chemistry, and superior mechanical flexibility during high-speed tensioned winding.
Modern pickup manufacturers face distinct challenges when working with ultra-fine rectangular magnet wire:
- Corner Radius Precision: Edge radiuses must be flawlessly rounded (micro-precision corners) to prevent enamel thinning or insulation breakdown under high tension.

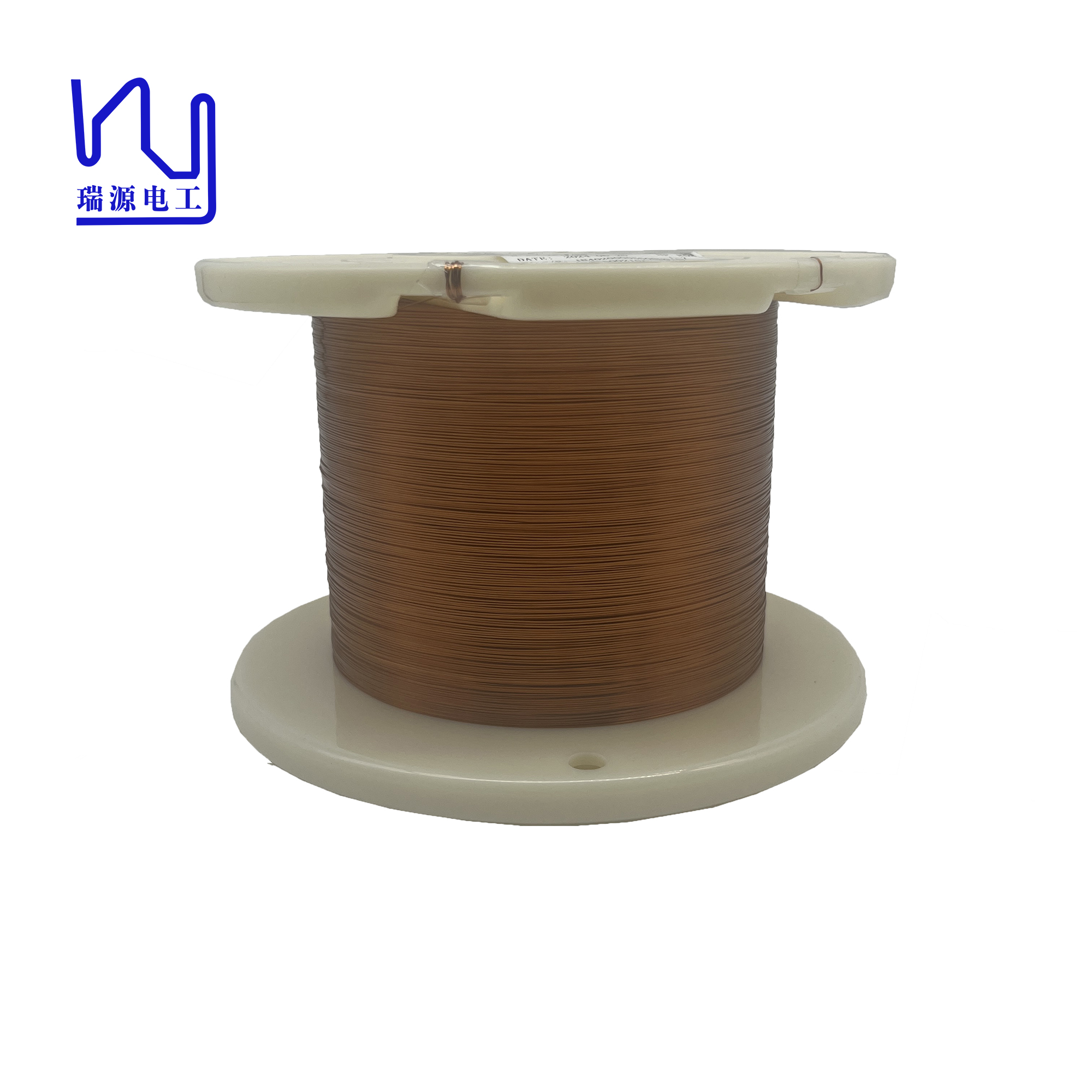

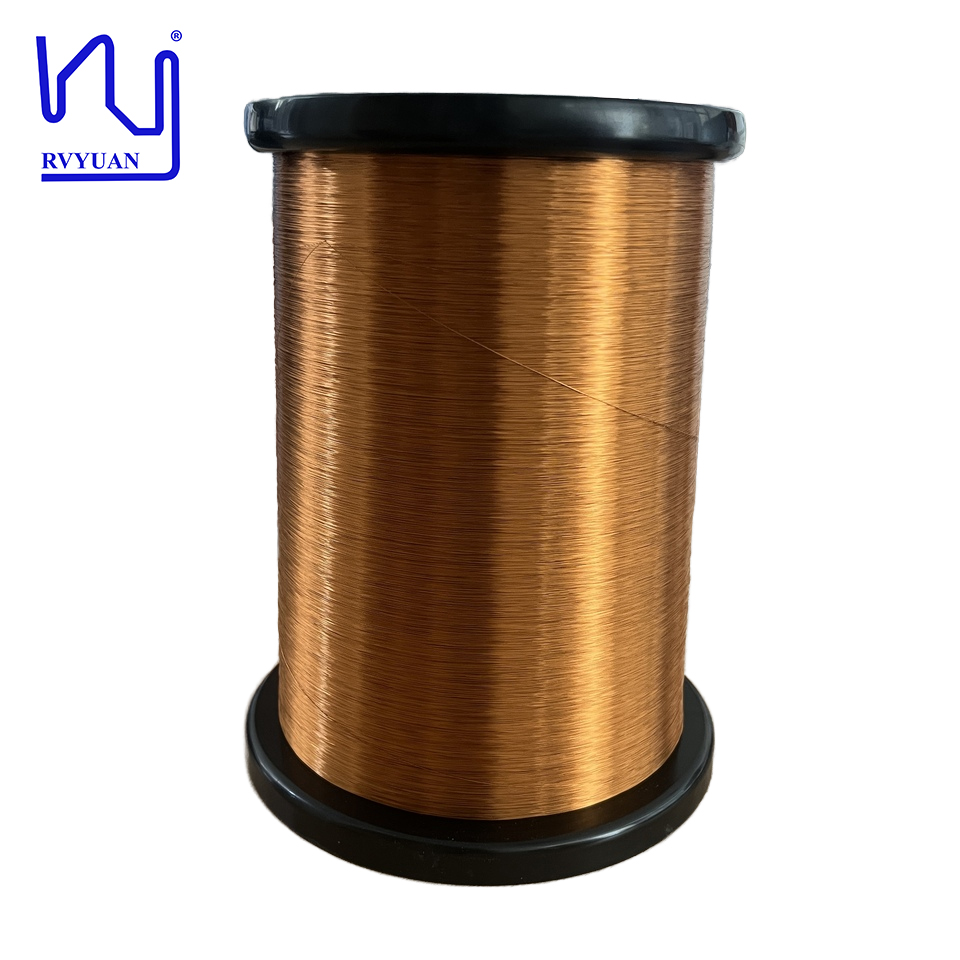

- Self-Bonding Thermal Resins: Hot-wind or solvent-activated self-adhesive films (such as AIW220 or UEW-F) allow bobbinless coil structures or rigid self-supporting pickup assemblies.
- Consistent Ultra-Thin Gauges: Producing stable rectangular dimensions down to 0.05mm thickness requires state-of-the-art diamond drawing dies and laser inline monitoring.
At Tianjin Ruiyuan Electric Material Co., Ltd. (Ruiyuan), we address these industrial needs by pairing 20+ years of metal drawing expertise with custom polymer insulation chemistry. Whether winding ultra-compact active pickups for 7-string or 8-string guitars or designing vintage-inspired flat-wire single-coils, our rectangular enameled copper wire provides the mechanical durability and electrical precision required by world-class instrument builders.
Proven Global Capabilities & Industrial R&D Innovation
SUCH CASE IS PREVALENT IN OUR COMPANY, THAT FULLY DEMONSTRATE OUR ADVANTAGES ON TECHNOLOGY AND SERVICE. BESIDES THIS, THESE NUMBERS TELL MORE ABOUT US:
Here we want to share one story shortly
One of European customer need high frequency litz wire that uses on wireless charge of automotive, but need excellent performance of solvent resistance, and flame rate follows UL94-V0, the current insulation could not meet the requirement, they had solution but the price was too high. Finally our R&D team proposed an innovative solution after fully discussion: ETFE insulation extruded on the surface of litz wire, that perfectly solved all the problems after one year verification. The project lasts two years, and the wire has been in mass production since this year.
About Tianjin Ruiyuan Electric Material Co., Ltd.
Tianjin Ruiyuan Electric Material Co,. Ltd. (Ruiyuan) was established in 2002. In the past 20 years, we have been thinking one question 'How Satisfy Customer' that drives us to expand product lines from fine enameled copper wire to litz wire, USTC, rectangular enameled copper wire, triple insulated wire and also guitar pickup wire, 6 main types with over 20 kinds of magnet wire. Here you will enjoy One Stop Purchase Service with cost effective price, and quality is the last thing you need to concern. We wish to help you reduce your costs and save your time, and establish long term Win-Win cooperation.
What we have been doing in 20 years is pursuing our operation philosophy 'Customer Oriented, Innovation brings more Value' that is not slogan, but a part of our DNA. Not like ordinary magnet wire provider only give specified size range, we are solution provider that need us to be more professional on wires, insulation material and your applications.
State-of-the-Art Manufacturing Infrastructure
One-Stop Solution
100% Open and Delivering On-Time. As a leading supplier of enamel copper wire, we have earned a reputation for providing superior customer experience.
Exquisite Quality
Ruiyuan attracts many outstanding technical and management talents. Our founders have built the best team in the industry with long-term vision.
Explore Features
Precision Customization
Customizing specialized conductor dimensions, high-temperature enamels, and self-bonding coatings tailored to guitar pickup specifications.
Frequently Asked Questions (FAQ)
Find detailed answers to common inquiries regarding sample testing, order fulfillment, technical specs, and customization policies.
Comprehensive Product Range
Browse our extended portfolio of high-purity OCC wires, high-voltage taped Litz wires, and custom guitar pickup magnet wires.
-
