Silk Covered Litz Wire For High‑Efficiency Motor Coil Production

1. The Industrial Revolution in Electric Motor Coil Manufacturing

The global transition toward electrification, ultra-high-speed automation, and sustainable transportation has fundamentally redefined the engineering requirements for electric motor coil design. Modern electrical machines—ranging from electric vehicle (EV) traction powertrains and high-speed CNC spindle drives to aerospace actuators and medical micro-turbines—are relentlessly pushed toward higher operating frequencies, superior power densities, and uncompromising energy conversion efficiencies.

At elevated switching frequencies (typically spanning 10 kHz to several hundred kHz), traditional solid copper conductors experience severe performance degradation due to high-frequency electromagnetic phenomena, primarily skin effect and proximity effect. These phenomena force alternating current (AC) to concentrate exclusively near the outer surface of conductors or across adjacent turns, drastically contracting the effective cross-sectional area. Consequently, the AC resistance ($R_{AC}$) skyrockets relative to DC resistance ($R_{DC}$), causing immense $I^2R$ thermal dissipation, hotspot generation, and catastrophic loss of operational efficiency.

To overcome these intrinsic physical constraints, Silk Covered Litz Wire (frequently referred to as USTC or Served Litz Wire) has emerged as the definitive benchmark conductor material for high-efficiency motor coil production. By bundling individually insulated enameled strands in precise, mathematically optimized twisted geometries and enclosing the assembly in high-tensile natural silk or high-grade synthetic fibers, silk-covered litz wire simultaneously minimizes AC resistance, improves winding slot fill factors, and enhances mechanical resilience during automated high-speed coil insertion.

2. Deep Technical Breakdown: How Silk Covered Litz Wire Works

Understanding the physics behind Silk Covered Litz Wire requires examining both its internal conductor construction and its outer textile serving layer:

Conductor Geometry and Strand Transposition

Litz wire consists of numerous ultra-fine enameled copper wires twisted together in specialized multi-step concentric or bunched patterns. Each single wire strand is insulated with a thin polyurethane, polyesterimide, or polyimide film coating. Because the strands are transposed along the length of the cable, each individual wire occupies all possible radial positions across the conductor cross-section with equal frequency. This equalizes the electromagnetic flux linked by each strand, balancing current distribution and effectively neutralizing skin and proximity losses.

The Critical Role of Silk Serving (USTC)

While unserved litz wire offers electrical benefits, it presents severe challenges during high-volume industrial coil winding. Unbound fine strand bundles tend to flair out, catch on winding tooling, and suffer enamel insulation abrasion under tension. Serving the litz bundle with natural silk (USTC) or synthetic yarn (such as Nylon or Polyester) solves these issues through several mechanisms:

• Mechanical Abrasion Resistance: The tight helical wrap of real silk acts as a protective barrier during automated winding, preserving the integrity of the underlying strand enamel coatings.
• Enhanced Dimensional Stability: The textile wrap maintains a consistent round or rectangular bundle profile, preventing strand displacement under high tension.
• Improved Impregnation & Varnish Retention: Natural silk fibers exhibit superior wicking action for insulating resins, varnishes, and trickling resins, ensuring zero air voids in the finished stator coil.
• Reduced Inter-Turn Dielectric Stress: The outer silk layer adds a spatial buffer between adjacent turns in the motor slot, reducing parasitic capacitance and preventing turn-to-turn dielectric breakdown under fast voltage rise times ($dv/dt$) induced by modern SiC/GaN inverters.

3. Key Application Scenarios in Modern Motor Manufacturing

The unique properties of Silk Covered Litz Wire make it indispensable across diverse high-tech industries requiring peak power density and minimal thermal footprint:

A. Electric Vehicle (EV) Powertrains & Traction Motors

Next-generation EV traction motors operate at elevated speeds (exceeding 20,000 RPM) driven by high-frequency Silicon Carbide (SiC) inverters. Silk Covered Litz Wire enables axial-flux and radial-flux motor designers to suppress high-frequency copper losses, reduce motor weight, and extend battery range without sacrificing torque density.

B. High-Speed CNC Machining Spindles

Industrial spindle motors operating at tens of thousands of RPM require compact stator geometries with minimal heat generation. Silk served litz wire windings dramatically lower winding temperatures, preventing thermal expansion of spindle shafts and maintaining micro-scale machining accuracy.

C. Aerospace & eVTOL Propulsion Actuators

In electric vertical takeoff and landing (eVTOL) aircraft and lightweight UAV actuators, every gram counts. Served litz wire allows coils to achieve high fill factors with class-leading efficiency, reducing cooling requirements and system weight.

D. Medical Tooling & Precision Micro-Motors

Surgical drills, dental tools, and robotic medical devices demand miniature motors that run cool to the touch. Fine-gauge silk covered litz wire (utilizing strands down to 0.03mm or 0.04mm) permits tight bending radii in ultra-compact coil slots without insulation rupture.

E. High-Frequency Wireless Power Transfer (WPT) Coils

Beyond rotating machines, stationary WPT transmitter and receiver pads for electric vehicles and industrial AGVs rely heavily on silk served litz wire to handle high AC currents at frequencies from 85 kHz to several MHz with Q-factors maximized.

4. Comparative Analysis: Silk Serving vs. Alternative Insulation Layers

Engineers often evaluate multiple serving and insulation options when designing high-efficiency coils. The table below outlines the trade-offs:

Insulation / Serving Type	Thermal Class	Mechanical Flexibility	Varnish Retention	Primary Application

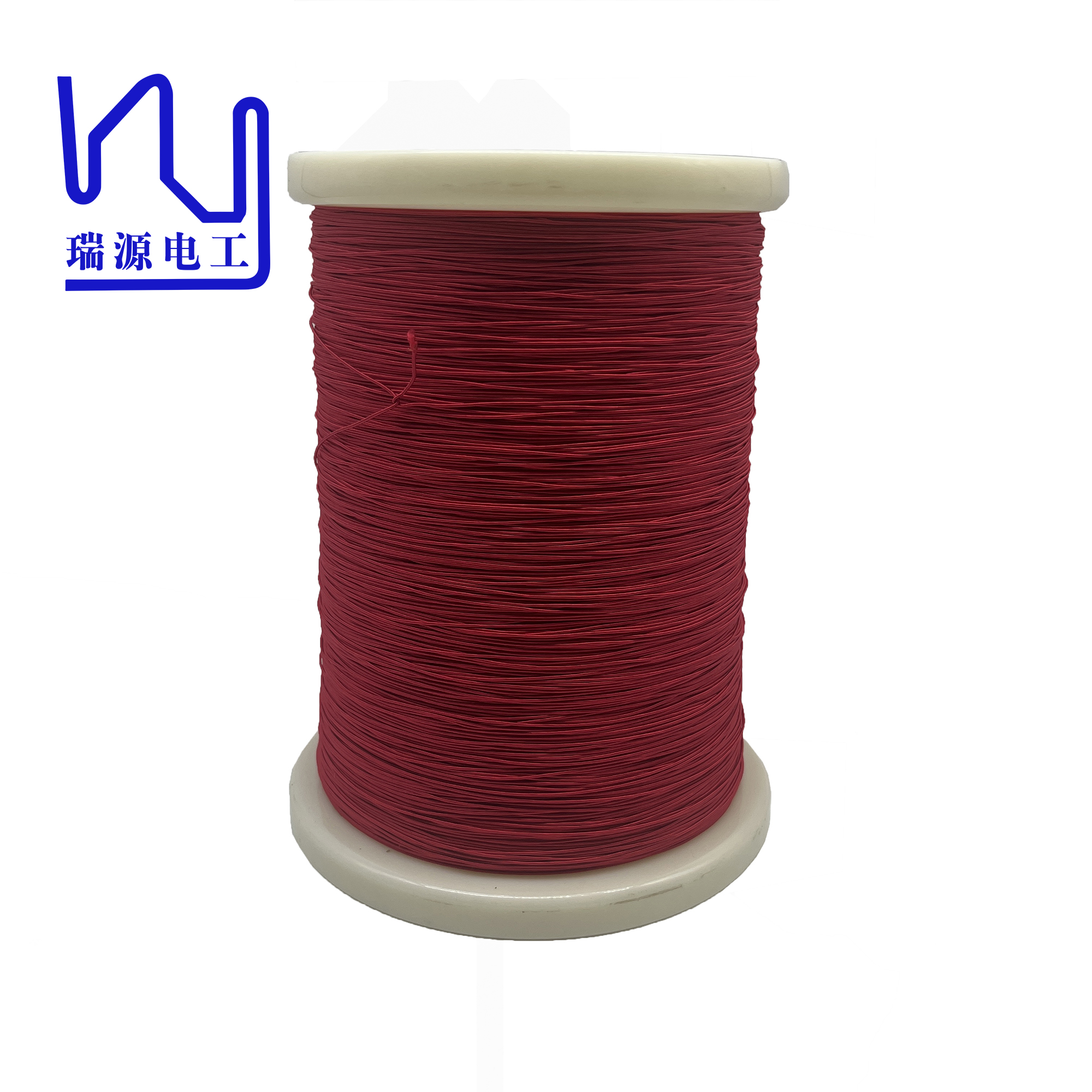

Natural Silk Covered (USTC)	130°C - 155°C	Exceptional	Highest	High-precision motors, medical micro-coils, RF inductors

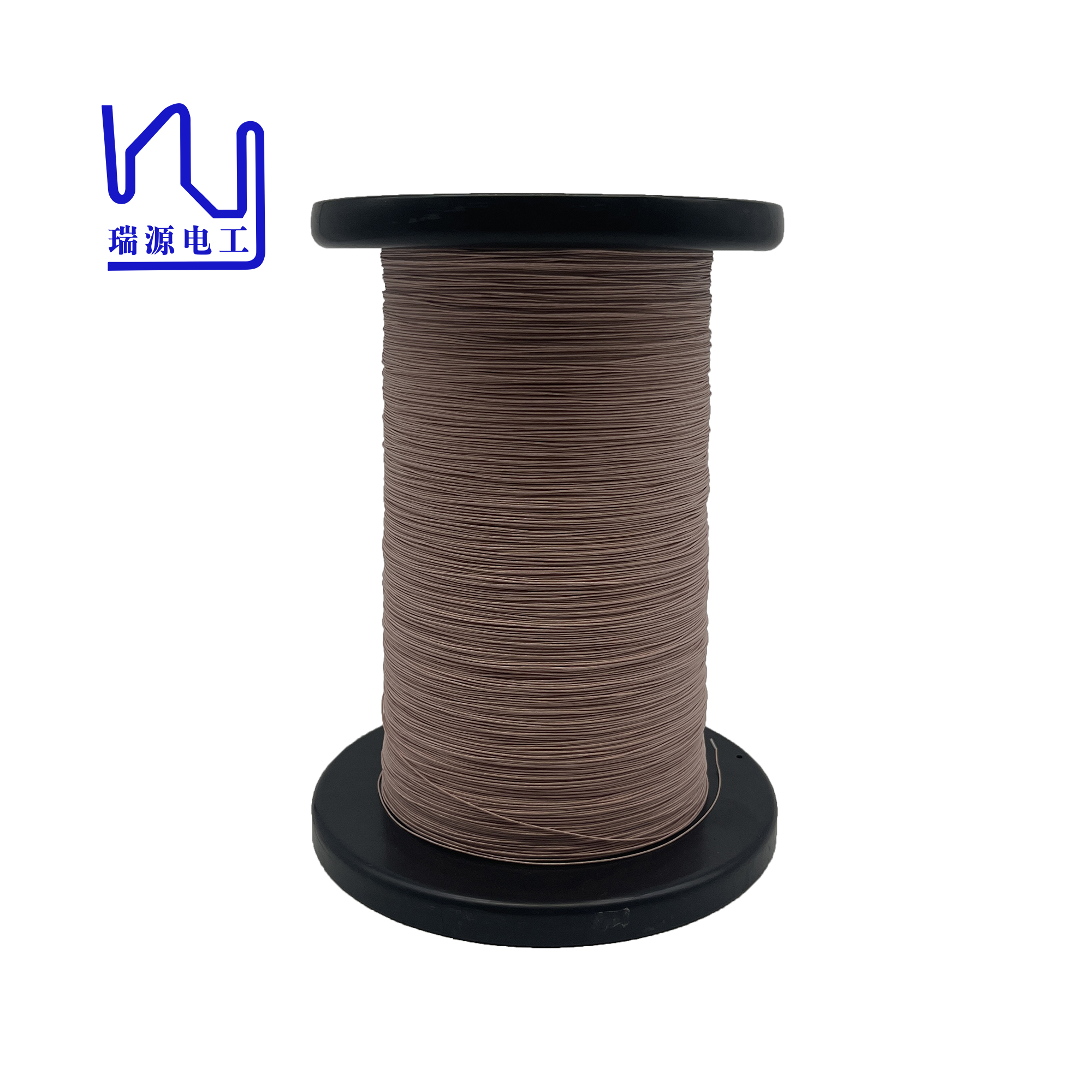

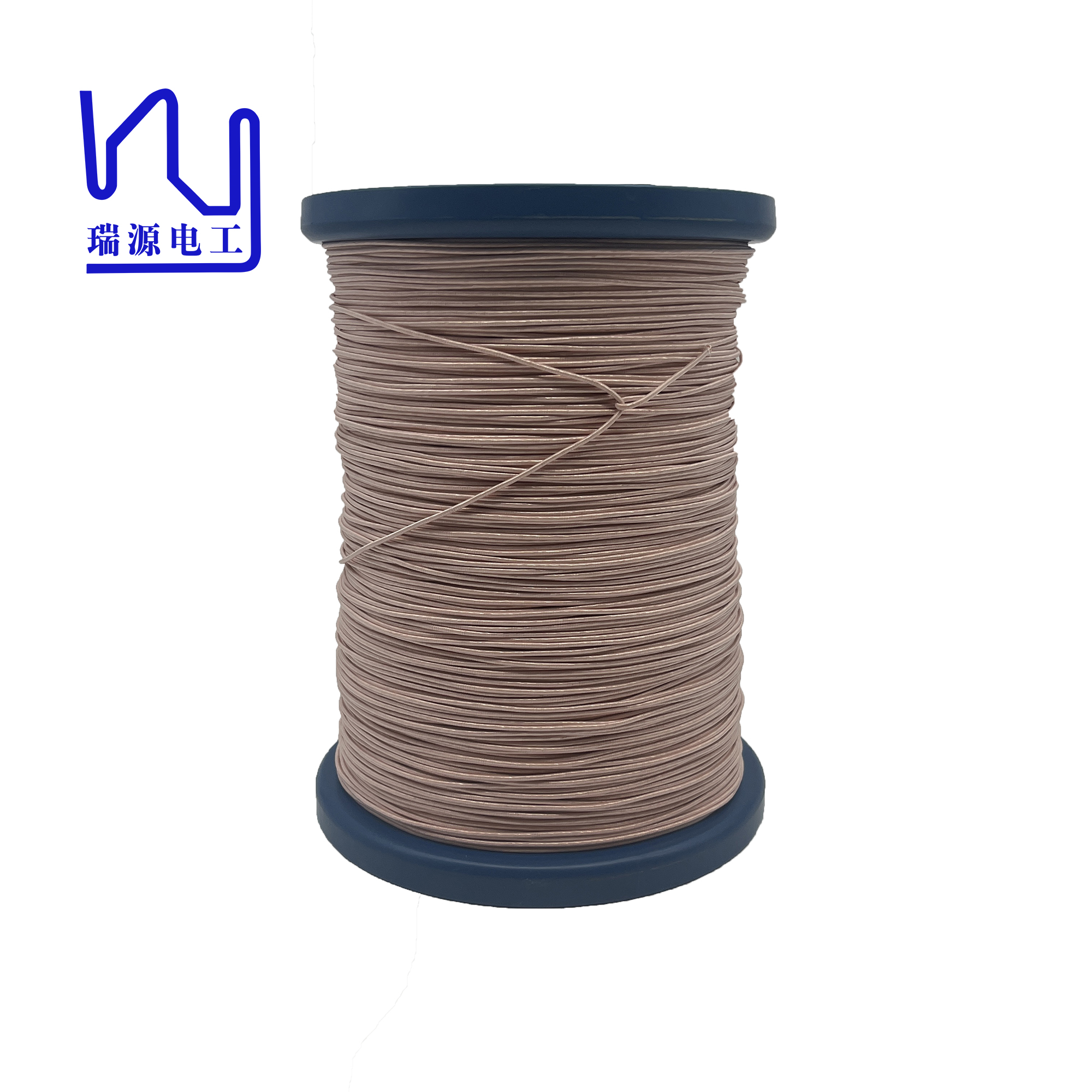

Nylon / Polyester Served	155°C - 180°C	Very Good	Good	Automotive actuators, industrial motors, transformers

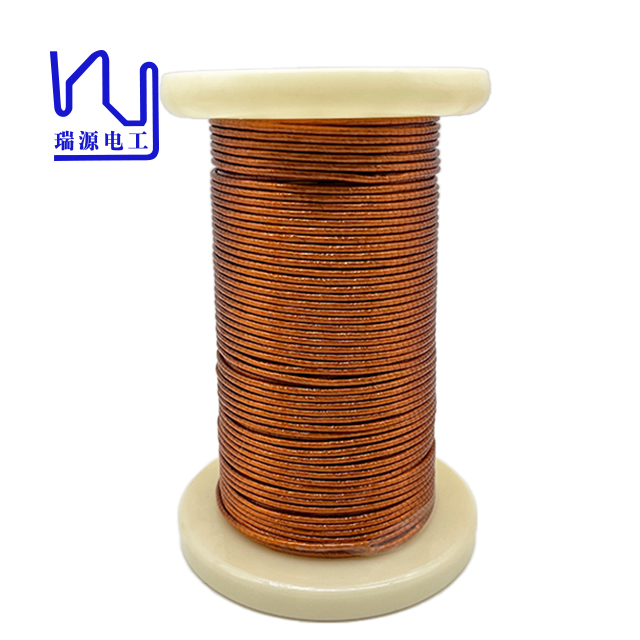

Kapton / PI Film Taped	200°C - 240°C	Moderate	Moderate	Extreme high-voltage EV stators & traction units

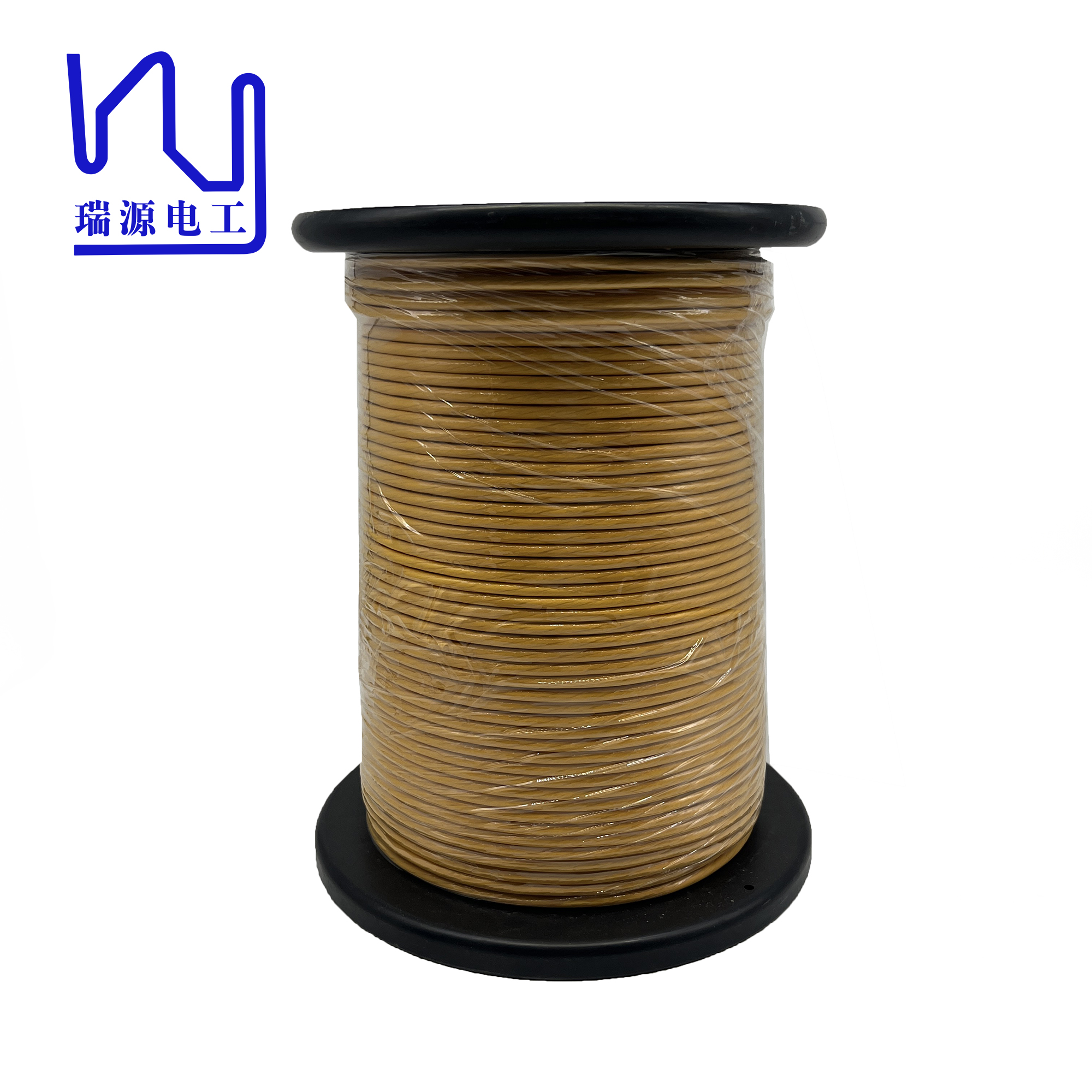

Extruded ETFE / Fluoropolymer	155°C - 200°C	Good	Low (Smooth surface)	Solvent-resistant automotive WPT, underwater motors
